Android RecyclerView Onclick New Activity Custom Adapter

dependency

dependencies {
    implementation fileTree(dir: 'libs', include: ['*.jar'])
    implementation 'com.android.support:appcompat-v7:28.0.0'
    implementation 'com.android.support.constraint:constraint-layout:1.1.3'
    implementation 'com.android.support:recyclerview-v7:28.0.0'

    testImplementation 'junit:junit:4.12'
    androidTestImplementation 'com.android.support.test:runner:1.0.2'
    androidTestImplementation 'com.android.support.test.espresso:espresso-core:3.0.2'
}
  1. Activity_main.xml
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity">

<android.support.v7.widget.RecyclerView
    android:id="@+id/recyclerview"
    android:layout_width="match_parent"
    android:layout_height="match_parent"></android.support.v7.widget.RecyclerView>

</LinearLayout>

2. mylist.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout
    xmlns:android="http://schemas.android.com/apk/res/android" android:layout_width="match_parent"
   android:orientation="vertical"
    android:id="@+id/linearLayout"
    android:layout_height="match_parent">

<TextView
    android:id="@+id/name"
    android:layout_width="match_parent"
    android:layout_height="wrap_content" />

    <ImageView
        android:id="@+id/logo"
        android:layout_width="match_parent"
        android:layout_height="wrap_content" />
</LinearLayout>

details_activity.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".Detailview">
<TextView
    android:id="@+id/text"
    android:layout_width="match_parent"
    android:layout_height="wrap_content" />
</LinearLayout>

Mainactivity.java

package sap.business.one.recycleonclick;

import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;
import android.support.v7.widget.GridLayoutManager;
import android.support.v7.widget.RecyclerView;

import java.util.ArrayList;

public class MainActivity extends AppCompatActivity {
private RecyclerView recyclerView;
private ArrayList <Movie> list = new ArrayList<Movie>(  );
private  Myadapter myadapter;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate( savedInstanceState );
        setContentView( R.layout.activity_main );
        recyclerView = findViewById( R.id.recyclerview );
        GridLayoutManager gridLayoutManager = new GridLayoutManager( this,2 );
        recyclerView.setLayoutManager( gridLayoutManager );
        myadapter = new Myadapter( this,list );
        recyclerView.setAdapter( myadapter );
        list.add( new Movie( "ashik",R.drawable.admin ) );
        list.add( new Movie( "Virat",R.drawable.person ) );
        list.add( new Movie( "Rohit",R.drawable.finance ) );
        list.add( new Movie( "Shakib",R.drawable.sales ) );
    }
}

detailsview.java

package sap.business.one.recycleonclick;

import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;
import android.widget.TextView;

public class Detailview extends AppCompatActivity {
private TextView textView;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate( savedInstanceState );
        setContentView( R.layout.activity_detailview );
        textView = findViewById( R.id.text );
String name = getIntent().getStringExtra( "name" ).trim();
textView.setText( name );

    }
}

Movie.java

package sap.business.one.recycleonclick;

public class Movie {
    String name;
    int logo;

    public Movie(String name,int logo) {
        this.name = name;
        this.logo = logo;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public int getLogo() {
        return logo;
    }

    public void setLogo(int logo) {
        this.logo = logo;
    }
}

Myadapder.java

package sap.business.one.recycleonclick;

import android.content.Context;
import android.content.Intent;
import android.support.annotation.NonNull;
import android.support.v7.widget.RecyclerView;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.ImageView;
import android.widget.LinearLayout;
import android.widget.TextView;

import java.util.ArrayList;

public class Myadapter extends RecyclerView.Adapter<Myadapter.Holder> {

    Context context;
    ArrayList<Movie> list;

    public Myadapter(Context context,ArrayList<Movie> list) {
        this.context = context;
        this.list = list;
    }

    @NonNull
    @Override
    public Holder onCreateViewHolder(@NonNull ViewGroup viewGroup,int i) {
        View view = LayoutInflater.from( context ).inflate( R.layout.mylist,viewGroup,false );
        Holder holder = new Holder( view );
        return holder;
    }

    @Override
    public void onBindViewHolder(@NonNull Holder holder,int i) {
final Movie movie = list.get( i );
holder.name.setText( movie.name );
holder.logo.setImageResource( movie.logo );
holder.linearLayout.setOnClickListener( new View.OnClickListener() {
    @Override
    public void onClick(View v) {
        Intent intent = new Intent( context,Detailview.class );
        intent.putExtra( "name",movie.getName() );
        context.startActivity( intent );
    }
} );
    }

    @Override
    public int getItemCount() {
        return list.size();
    }

    public class Holder extends RecyclerView.ViewHolder {
        public TextView name;
        public ImageView logo;
        public LinearLayout linearLayout;
        public Holder(@NonNull View itemView) {
            super( itemView );
            name = itemView.findViewById(  R.id.name);
            logo = itemView.findViewById(  R.id.logo);
            linearLayout = itemView.findViewById(  R.id.linearLayout);

        }
    }
}

Android Shared Preference

Android Shared Preference Save And Read Data From One Activity Class To Another Activity Class.

To Save Android Shared Preference At ServerConfiguration.java

 SharedPreferences sharedPref = getSharedPreferences("server", 0); // Here server is SharedPreferences name
                SharedPreferences.Editor editor = sharedPref.edit();
                editor.putString("url",urltext); // url is key and urltext is String get from edit text
                editor.putString("username",usernametext); // username is key and usernametext is String get from edit text
                editor.putString("password",passwordtext); // password is key and passwordtext is String get from edit text
                editor.commit();

To Get Android Shared Preference At Mainactivity.java

       // For Get Shared Preference

        SharedPreferences mPrefs = getSharedPreferences("server",0);


        if (mPrefs.contains("url")) {
            String str = mPrefs.getString("url", "");
            urlsp.setText(str);
        }
        if (mPrefs.contains("username")) {

        }

        if (mPrefs.contains("password")) {

        }

Android Ui Design Code

GridFiew Border

GridView gv = findViewById(R.id.my_grid_view);
gv.setBackgroundColor(Color.WHITE);
gv.setVerticalSpacing(1);
gv.setHorizontalSpacing(1);

Border Background

<?xml version="1.0" encoding="utf-8"?>
<shape xmlns:android="http://schemas.android.com/apk/res/android"
    android:shape="rectangle">
    <stroke android:color="@color/blue" android:width="1dp"/>
    <corners android:radius="5dp" />
</shape>

Linear Gradiant Background 2 Color

<?xml version="1.0" encoding="utf-8"?>
<shape xmlns:android="http://schemas.android.com/apk/res/android"
    android:shape="rectangle">
    <gradient
        android:angle="90"
        android:startColor="#FFFF0000"
        android:endColor="#FF00FF00"
        android:type="linear"/>
</shape>

Gradiant Background 3 Color

<shape
    xmlns:android="http://schemas.android.com/apk/res/android"
    android:shape="rectangle">
    <gradient
        android:startColor="#000000"
        android:centerColor="#5b5b5b"
        android:endColor="#000000"
        android:angle="0" />
</shape>

How To Use Custom Font In Android Apps

1. Create an assets fonder in your app’s main directory then copy and paste all .ttf font files which you are going to used inside assets folder.

2. In Mainactivity.javafile Like This Way

ublic class MainActivity extends AppCompatActivity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        String customFont = "Carrington.ttf";
        Typeface typeface = Typeface.createFromAsset(getAssets(), customFont);
        TextView textView = (TextView) findViewById(R.id.custom_text);
        TextView textView1 = (TextView) findViewById(R.id.custom_text1);
        textView.setTypeface(typeface);
        textView1.setTypeface(typeface);
    }
}

How To Use Fontawesome In Android Studio

  1. Download Fontawesome Font And Find fontawesome-webfont.ttf .
  2.  Past Font In assets folder inside main folder
  3. Copy Font Awesome Icon Code From Fontawesome Chetcheet Here Is Link
  4. Store Fontawesome Icon Code In String.xml file As A Resorce File
<resources>
    <string name="app_name">FontAwesome Icons In Android Application</string>
    <string name="font_awesome_android_icon"></string>
    <string name="font_awesome_area_chart_icon"></string>
    <string name="font_awesome_cubes_icon"></string>
    <string name="font_awesome_mobile_phone_icon"></string>
</resources>

use Icon Name In Textview Or Anoter As text

  <TextView
        android:id="@+id/font_awesome_android_icon"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"

        android:gravity="center_horizontal"
        android:text="@string/taxy"
        android:textColor="#80d204"
        android:textSize="50sp" />

MAin Activity

   TextView fontAwesomeAndroidIcon = (TextView) findViewById(R.id.font_awesome_android_icon);
        Typeface fontawasmoe = Typeface.createFromAsset(getAssets(), "fontawesome-webfont.ttf");
        fontAwesomeAndroidIcon.setTypeface(fontawasmoe);

Inventory Template Android Xml Ready

Normal Purchase Template

MAinactivity.xml

Use A Recyclerview To Fill Item Data after

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    android:background="#ffffff"
    >
    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:orientation="vertical"
        android:background="#ffffff">

        <LinearLayout
            android:layout_width="50dp"
            android:layout_height="50dp"
            android:layout_gravity="center_horizontal"
            android:background="@drawable/circle4"
            android:layout_marginTop="30dp">
            <ImageView
                android:layout_width="30dp"
                android:layout_height="30dp"
                android:layout_gravity="center"
                android:layout_marginLeft="12dp"
                android:layout_marginBottom="2dp"
                android:src="@drawable/ic_hot_chocolate_cup1"/>
        </LinearLayout>
        <TextView       android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:textSize="12dp"
            android:text="Normal purchase"
            android:textColor="#000"
            android:layout_gravity="center_horizontal"
            android:layout_marginTop="15dp"/>
        <LinearLayout
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:orientation="horizontal"
            android:layout_gravity="center_horizontal"
            android:layout_marginTop="20dp">
            <ImageView
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:src="@drawable/ic_british_pound_symbol"
                android:layout_marginTop="10dp"/>
            <TextView           android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:textColor="#000"
                android:text="7.85"
                android:textSize="37dp"/>

        </LinearLayout>
        <View
            android:layout_width="match_parent"
            android:layout_height="0.7dp"
            android:background="#b1b1b1"
            android:layout_marginTop="30dp"/>
        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:orientation="horizontal"
            android:layout_marginLeft="15dp"
            android:layout_marginRight="15dp"
            android:layout_marginTop="15dp">
            <TextView           android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:textSize="12dp"
                android:layout_weight="1"
                android:text="ITEAM"

                android:textColor="#b1b1b1"/>
            <TextView           android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:textSize="12dp"
                android:layout_weight="1"
                android:gravity="center"
                android:text="QTY"
                android:layout_marginLeft="50dp"
                android:textColor="#b1b1b1"/>
            <TextView           android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:textSize="12dp"
                android:gravity="right"
                android:text="PRICE"
                android:textColor="#b1b1b1"/>
        </LinearLayout>

        <LinearLayout
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:orientation="vertical"
            android:layout_weight="1.8"
            >

            <TextView          android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:textColor="#000"
                android:textSize="13dp"
                android:id="@+id/iteamName"
                android:text="Orange and Rosemerry"/>
        </LinearLayout>
        <LinearLayout
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:orientation="vertical"
            android:layout_gravity="center"
            android:gravity="center"
            android:layout_weight="0.8">

            <TextView          android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:id="@+id/quantity"
                android:textColor="#000"
                android:textSize="13dp"
                android:layout_marginLeft="5dp"
                android:text="1"/>
        </LinearLayout>

        <LinearLayout
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:orientation="vertical"
            android:gravity="right"
            android:layout_weight="1.2">

            <LinearLayout
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:orientation="horizontal">
                <ImageView
                    android:layout_width="12dp"
                    android:layout_height="12dp"
                    android:layout_marginTop="4dp"
                    android:src="@drawable/ic_british_pound_symbol"/>
                <TextView          android:layout_width="wrap_content"
                    android:layout_height="wrap_content"
                    android:id="@+id/price"
                    android:textColor="#000"
                    android:textSize="13dp"
                    android:text="2.3"/>
            </LinearLayout>
        </LinearLayout>
        <View
            android:layout_width="match_parent"
            android:layout_height="0.7dp"
            android:background="#b1b1b1"
            android:layout_marginLeft="15dp"
            android:layout_marginRight="15dp"
            android:layout_marginTop="5dp"/>
        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:orientation="horizontal"
            android:layout_marginTop="15dp">
            <TextView           android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:text="VAT"
                android:layout_marginLeft="15dp"
                android:textSize="12dp"
                android:layout_weight="1"
                android:textColor="#b1b1b1"/>
            <ImageView
                android:layout_width="10dp"
                android:layout_height="10dp"
                android:layout_marginTop="3dp"
                android:src="@drawable/ic_pound"/>
            <TextView           android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:text="7.85"
                android:textSize="12dp"
                android:layout_marginRight="15dp"
                android:textColor="#b1b1b1"/>
        </LinearLayout>
        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:orientation="horizontal"
            android:layout_marginTop="10dp">
            <TextView
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:text="Total"
                android:layout_marginLeft="15dp"
                android:textSize="12dp"
                android:layout_weight="1"
                android:textColor="#000"/>

            <ImageView
                android:layout_width="9dp"
                android:layout_height="10dp"
                android:layout_marginTop="3dp"
                android:src="@drawable/ic_british_pound_symbol" />
            <TextView
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:text="7.85"
                android:textSize="12dp"
                android:layout_marginRight="15dp"
                android:textColor="#000"/>
        </LinearLayout>
    </LinearLayout>
    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:background="#f6f8f9"
        android:layout_alignParentBottom="true"
        android:paddingBottom="20dp"
        android:paddingTop="20dp"
        android:gravity="center_horizontal">
        <TextView       android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="Digital receipt powered by"
            android:textSize="12dp"
            android:textColor="#b1b1b1"/>
        <TextView
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="flux"
            android:layout_marginLeft="3dp"
            android:textSize="12dp"
            android:textColor="#b1b1b1"/>
    </LinearLayout>
</RelativeLayout>

Drawable File Link

Android Dashboard Design Xml Ready

DashBoard Design

DashBoard Design

res/values/colors.xml


<?xml version="1.0" encoding="utf-8"?>
<resources>
    <color name="colorPrimary">#009688</color>
    <color name="colorPrimaryDark">#00796B</color>
    <color name="colorAccent">#FF4081</color>
    <color name="light_black">#504f4f</color>
    <color name="black">#000000</color>
    <color name="blue">#0737d4</color>
</resources>

res/drawable/ circular_progress_bar.xml

<?xml version="1.0" encoding="utf-8"?>
<shape
    xmlns:android="http://schemas.android.com/apk/res/android"
    android:innerRadiusRatio="2.3"
    android:shape="ring"
    android:thickness="5dp"
    android:useLevel="true">
    <solid android:color="@color/colorPrimary" />
</shape>

res/drawable/ circle_shape.xml

<?xml version="1.0" encoding="utf-8"?>
<shape
    xmlns:android="http://schemas.android.com/apk/res/android"
    android:shape="ring"
    android:innerRadiusRatio="2.5"
    android:thickness="1dp"
    android:useLevel="false">

    <solid android:color="#CCC" />

</shape>

res/layout/ dashboard_xml_ui_design.xml

<?xml version="1.0" encoding="utf-8"?>
<ScrollView xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="#ddd">

    <LinearLayout
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:orientation="vertical"
        android:padding="10dp">

        <LinearLayout
            android:layout_width="fill_parent"
            android:layout_height="wrap_content"
            android:orientation="horizontal"
            android:paddingBottom="10dp">

            <LinearLayout
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:background="#fff"
                android:gravity="center_horizontal"
                android:orientation="vertical">

                <RelativeLayout
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content">

                    <TextView
                        android:layout_width="wrap_content"
                        android:layout_height="wrap_content"
                        android:layout_centerHorizontal="true"
                        android:layout_marginTop="16dp"
                        android:text="Storage"
                        android:textSize="18sp"
                        android:textStyle="bold" />

                    <ProgressBar
                        android:id="@+id/progressBar"
                        style="?android:attr/progressBarStyleHorizontal"
                        android:layout_width="200dp"
                        android:layout_height="200dp"
                        android:layout_marginTop="26dp"
                        android:background="@drawable/circle_shape"
                        android:indeterminate="false"
                        android:max="100"
                        android:progress="10"
                        android:progressDrawable="@drawable/circular_progress_bar" />

                    <TextView
                        android:id="@+id/progress_circle_text"
                        android:layout_width="wrap_content"
                        android:layout_height="wrap_content"
                        android:layout_centerInParent="true"
                        android:background="@android:color/transparent"
                        android:gravity="center"
                        android:text="15%"
                        android:textColor="@color/colorPrimary"
                        android:textSize="30sp"
                        android:textStyle="bold" />
                </RelativeLayout>
            </LinearLayout>

            <LinearLayout
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_marginLeft="10dp"
                android:layout_weight="1"
                android:background="#fff"
                android:gravity="center_horizontal"
                android:orientation="vertical">

                <RelativeLayout
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content">

                    <TextView
                        android:layout_width="wrap_content"
                        android:layout_height="wrap_content"
                        android:layout_centerHorizontal="true"
                        android:layout_marginTop="16dp"
                        android:text="Battery"
                        android:textSize="18sp"
                        android:textStyle="bold" />


                    <ProgressBar
                        android:id="@+id/progressBar1"
                        style="?android:attr/progressBarStyleHorizontal"
                        android:layout_width="200dp"
                        android:layout_height="200dp"
                        android:layout_marginTop="26dp"
                        android:background="@drawable/circle_shape"
                        android:indeterminate="false"
                        android:max="100"
                        android:progress="75"
                        android:progressDrawable="@drawable/circular_progress_bar" />

                    <TextView
                        android:id="@+id/progress_circle_text1"
                        android:layout_width="wrap_content"
                        android:layout_height="wrap_content"
                        android:layout_centerInParent="true"
                        android:background="@android:color/transparent"
                        android:gravity="center"
                        android:text="75%"
                        android:textColor="@color/colorPrimary"
                        android:textSize="30sp"
                        android:textStyle="bold" />
                </RelativeLayout>
            </LinearLayout>
        </LinearLayout>

        <LinearLayout
            android:layout_width="fill_parent"
            android:layout_height="wrap_content"
            android:orientation="horizontal">

            <LinearLayout
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:background="#fff"
                android:gravity="center_horizontal"
                android:orientation="vertical">

                <RelativeLayout
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content">

                    <TextView
                        android:layout_width="wrap_content"
                        android:layout_height="wrap_content"
                        android:layout_centerHorizontal="true"
                        android:layout_marginTop="16dp"
                        android:text="RAM"
                        android:textSize="18sp"
                        android:textStyle="bold" />

                    <ProgressBar
                        android:id="@+id/progressBar3"
                        style="?android:attr/progressBarStyleHorizontal"
                        android:layout_width="200dp"
                        android:layout_height="200dp"
                        android:layout_marginTop="26dp"
                        android:background="@drawable/circle_shape"
                        android:indeterminate="false"
                        android:max="100"
                        android:progress="60"
                        android:progressDrawable="@drawable/circular_progress_bar" />

                    <TextView
                        android:id="@+id/progress_circle_text3"
                        android:layout_width="wrap_content"
                        android:layout_height="wrap_content"
                        android:layout_centerInParent="true"
                        android:background="@android:color/transparent"
                        android:gravity="center"
                        android:text="60%"
                        android:textColor="@color/colorPrimary"
                        android:textSize="30sp"
                        android:textStyle="bold" />
                </RelativeLayout>
            </LinearLayout>

            <LinearLayout
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_marginLeft="10dp"
                android:layout_weight="1"
                android:background="#fff"
                android:gravity="center_horizontal"
                android:orientation="vertical">

                <RelativeLayout
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content">

                    <TextView
                        android:layout_width="wrap_content"
                        android:layout_height="wrap_content"
                        android:layout_centerHorizontal="true"
                        android:layout_marginTop="16dp"
                        android:text="Performance"
                        android:textSize="18sp"
                        android:textStyle="bold" />


                    <ProgressBar
                        android:id="@+id/progressBar4"
                        style="?android:attr/progressBarStyleHorizontal"
                        android:layout_width="200dp"
                        android:layout_height="200dp"
                        android:layout_marginTop="26dp"
                        android:background="@drawable/circle_shape"
                        android:indeterminate="false"
                        android:max="100"
                        android:progress="85"
                        android:progressDrawable="@drawable/circular_progress_bar" />

                    <TextView
                        android:id="@+id/progress_circle_text4"
                        android:layout_width="wrap_content"
                        android:layout_height="wrap_content"
                        android:layout_centerInParent="true"
                        android:background="@android:color/transparent"
                        android:gravity="center"
                        android:text="85%"
                        android:textColor="@color/colorPrimary"
                        android:textSize="30sp"
                        android:textStyle="bold" />
                </RelativeLayout>
            </LinearLayout>
        </LinearLayout>


    </LinearLayout>
</ScrollView>

Android Profile Template Xml Ready

White And Gray Profile Template

White And Gray Profile Template

White And Gray Profile Template xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent">
    <FrameLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_above="@+id/linear"
        >
        <ImageView
            android:layout_width="match_parent"
            android:layout_height="match_parent"
            android:src="@drawable/backgrd"
            android:scaleType="centerCrop"
            android:layout_marginBottom="25dp"
            />
        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="match_parent"
            android:orientation="vertical"
            android:gravity="bottom">
            <LinearLayout
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:orientation="horizontal"
                >
                <LinearLayout
                    android:layout_weight="1"
                    android:layout_width="match_parent"
                    android:layout_height="match_parent"
                    android:orientation="vertical"
                    android:layout_marginBottom="20dp"
                    >
                    <ImageView
                        android:layout_weight="1"
                        android:layout_width="50dp"
                        android:layout_height="50dp"
                        android:src="@drawable/fb"
                        android:layout_gravity="center"
                        android:gravity="bottom"
                        />
                    <TextView
                        android:layout_weight="1"
                        android:id="@+id/sin"
                        android:layout_width="match_parent"
                        android:layout_height="match_parent"
                        android:text="456 Friends"
                        android:gravity="center"
                        android:textSize="12dp"
                        android:textColor="#85ffffff"
                        />
                </LinearLayout>
                <ImageView
                    android:layout_width="100dp"
                    android:layout_height="100dp"
                    android:src="@drawable/meninblack"
                    android:gravity="bottom"
                    />
                <LinearLayout
                    android:layout_weight="1"
                    android:layout_width="match_parent"
                    android:layout_height="match_parent"
                    android:orientation="vertical"
                    android:layout_marginBottom="20dp"
                    >
                    <ImageView
                        android:layout_weight="1"
                        android:layout_width="50dp"
                        android:layout_height="50dp"
                        android:src="@drawable/twitter"
                        android:layout_gravity="center"
                        android:gravity="bottom"

                        />
                    <TextView
                        android:gravity="center"
                        android:layout_weight="1"
                        android:id="@+id/sinn"
                        android:layout_width="match_parent"
                        android:layout_height="match_parent"
                        android:text="562 Followings"
                        android:layout_gravity="center"
                        android:textSize="12dp"
                        android:textColor="#85ffffff"
                        />
                </LinearLayout>
            </LinearLayout>
        </LinearLayout>
    </FrameLayout>
    <LinearLayout
        android:id="@+id/linear"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:orientation="vertical"
        android:layout_alignParentBottom="true">
        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:orientation="horizontal"
            >
            <TextView
                android:layout_weight="1"
                android:id="@+id/usrusr"
                android:textSize="16dp"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:text="Name"
                android:textColor="#a2a1b8"
                android:maxLength="12"
                android:background="#0000"
                android:padding="16dp"
                android:gravity="left"
                />
            <TextView
                android:layout_weight="1"
                android:id="@+id/ususr"
                android:textSize="16dp"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:hint="Sam Enric"
                android:textColorHint="#181737"
                android:textColor="#181737"
                android:maxLength="12"
                android:background="#0000"
                android:padding="16dp"
                android:gravity="right"
                />
        </LinearLayout>
        <View
            android:layout_width="match_parent"
            android:layout_height="1dp"
            android:background="#dad8d8"/>
        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:orientation="horizontal"
            >
            <TextView
                android:layout_weight="1"
                android:id="@+id/mail"
                android:textSize="16dp"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:text="Email"
                android:textColor="#a2a1b8"
                android:maxLength="12"
                android:background="#0000"
                android:padding="16dp"
                android:gravity="left"/>
            <TextView
                android:layout_weight="1"
                android:id="@+id/maill"
                android:textSize="16dp"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:textColorHint="#1b193b"
                android:hint="sam@seotoolzz.com"
                android:textColor="#181737"
                android:maxLength="12"
                android:background="#0000"
                android:padding="16dp"
                android:gravity="right"
                />
        </LinearLayout>
        />
        <View
            android:layout_width="match_parent"
            android:layout_height="1dp"
            android:background="#dad8d8"/>

        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:orientation="horizontal"
            >
            <TextView
                android:layout_weight="1"
                android:id="@+id/pswrd"
                android:textSize="16dp"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:text="Password"
                android:textColor="#a2a1b8"
                android:maxLength="12"
                android:background="#0000"
                android:padding="16dp"
                android:gravity="left"
                />
            <TextView
                android:layout_weight="1"
                android:id="@+id/pswrdd"
                android:textSize="16dp"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:textColorHint="#1b193b"
                android:inputType="textPassword"
                android:hint="**********"
                android:textColor="#181737"
                android:maxLength="12"
                android:background="#0000"
                android:padding="16dp"
                android:gravity="right"
                />
        </LinearLayout>
        <View
            android:layout_width="match_parent"
            android:layout_height="1dp"
            android:background="#dad8d8"/>
        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:orientation="horizontal"
            >
            <TextView
                android:layout_weight="1"
                android:id="@+id/fbook"
                android:textSize="16dp"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:text="Facebook"
                android:textColor="#a2a1b8"
                android:maxLength="12"
                android:background="#0000"
                android:padding="16dp"
                android:gravity="left"
                />
            <!--com.rey.material.widget.Switch!-->
            <Switch
                android:layout_weight="1"
                android:id="@+id/switcch"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:padding="16dp"
                android:gravity="left"
                />
        </LinearLayout>
        <View
            android:layout_width="match_parent"
            android:layout_height="1dp"
            android:background="#dad8d8" />
        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:orientation="horizontal"
            >
            <TextView
                android:layout_weight="1"
                android:id="@+id/goooogleee"
                android:textSize="16dp"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:text="Google+"
                android:textColor="#a2a1b8"
                android:maxLength="12"
                android:background="#0000"
                android:padding="16dp"
                android:gravity="left"
                />
            <TextView
                android:layout_weight="1"
                android:id="@+id/goooglggeee"
                android:textSize="16dp"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:hint="Enabled"
                android:textColorHint="#181737"
                android:maxLength="12"
                android:background="#0000"
                android:padding="16dp"
                android:gravity="right"
                />
        </LinearLayout>
    </LinearLayout>
</RelativeLayout>

White And Gray Profile Template Drawable File Link

Profile Info Template

Add Dependency On App Module

    implementation 'de.hdodenhof:circleimageview:3.0.0'

Profile.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical">
    <FrameLayout
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:background="#000000">

        <ImageView
            android:id="@+id/img"
            android:layout_width="match_parent"
            android:layout_height="260dp"
            android:scaleType="fitXY"
            android:src="@drawable/kamran"
            android:alpha="0.8" />
        <android.support.v7.widget.Toolbar
            xmlns:android="http://schemas.android.com/apk/res/android"
            android:layout_width="match_parent"
            android:layout_height="wrap_content">
            <ImageView
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:background="@drawable/gobackplease"
                android:layout_marginLeft="20dp"/>
            <TextView
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:text="Personal Info"
                android:textSize="20dp"
                android:layout_gravity="center"
                android:gravity="bottom"
                android:textColor="#fff"/>
            <TextView
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:text="Save"
                android:textSize="14dp"
                android:layout_gravity="right"
                android:layout_marginRight="20dp"
                android:textColor="#fff"/>
        </android.support.v7.widget.Toolbar>
        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:orientation="horizontal"
            >


            <de.hdodenhof.circleimageview.CircleImageView
                android:id="@+id/circleview"
                android:layout_width="96dp"
                android:layout_height="96dp"
                app:civ_border_width="2dp"
                app:civ_border_color="#FF000000"
                android:src="@drawable/kamran1"
                android:layout_marginTop="70dp"
                android:layout_marginLeft="5dp"
                app:view_shadowRadius="2dp"
                app:view_shadowDx="2dp"
                app:view_shadowDy="0dp"
                app:view_borderWidth="2dp"
                app:view_borderColor="#cccccc"
                />
        </LinearLayout>
    </FrameLayout>
    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:orientation="horizontal">
        <TextView
            android:layout_width="0dp"
            android:layout_weight="0.35"
            android:layout_height="wrap_content"
            android:text="Name"
            android:textSize="14sp"
            android:layout_marginLeft="15dp"
            android:padding="20dp"/>
        <EditText
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_weight="1"
            android:textSize="14sp"
            android:hint="Sam Enric"
            android:inputType="textEmailAddress"
            android:padding="16dp"
            android:layout_gravity="center"
            android:background="#00000000"/>
    </LinearLayout>
    <View
        android:layout_width="match_parent"
        android:layout_height="0.1dp"
        android:background="#ACACAC"/>
    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:orientation="horizontal">
        <TextView
            android:layout_width="0dp"
            android:layout_weight="0.3"
            android:layout_height="wrap_content"
            android:text="Email"
            android:textSize="14dp"
            android:layout_marginLeft="15dp"
            android:padding="20dp"/>
        <EditText
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_weight="1"
            android:textSize="14sp"
            android:hint="Sam_enric@Seotoolzz.com"
            android:inputType="textEmailAddress"
            android:padding="16dp"
            android:layout_gravity="center"
            android:background="#00000000"/>
    </LinearLayout>
    <View
        android:layout_width="match_parent"
        android:layout_height="0.1dp"
        android:background="#ACACAC"/>
    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:orientation="horizontal">
        <TextView
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_weight="0.5"
            android:text="Password"
            android:textSize="14dp"
            android:padding="20dp"
            android:layout_marginLeft="15dp"
            android:id="@+id/myTextView" />
        <EditText
            android:layout_width="0dp"
            android:layout_weight="1"
            android:layout_height="wrap_content"
            android:inputType="textPassword"
            android:textSize="14sp"
            android:hint="**********"
            android:background="#00000000"
            android:padding="20dp"/>
    </LinearLayout>
    <View
        android:layout_width="match_parent"
        android:layout_height="0.1dp"
        android:background="#ACACAC"/>
    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:orientation="horizontal">
        <TextView
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_weight="1"
            android:text="Active"
            android:textSize="14dp"
            android:layout_marginLeft="15dp"
            android:padding="20dp"/>
        <Switch
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:gravity="center"
            android:checked="true"
            android:layout_below="@+id/logo"
            android:layout_centerHorizontal="true"
            android:layout_marginTop="13dp"
            android:layout_marginRight="15dp"
            android:layout_marginBottom="13dp"
            android:elevation="0dp"
            android:switchPadding="16dp"
            android:id="@+id/switcher"
            />
    </LinearLayout>
    <View
        android:layout_width="match_parent"
        android:layout_height="0.1dp"
        android:background="#ACACAC"/>
    <TextView
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:text="Display Status Goes Here...."
        android:textColor="#868686"
        android:textSize="16dp"
        android:background="#f0f0f4"
        android:paddingTop="10dp"
        android:paddingBottom="10dp"
        android:paddingLeft="22dp"/>
</LinearLayout>

Profile 2 Drawable File Link

Login And Signup Template

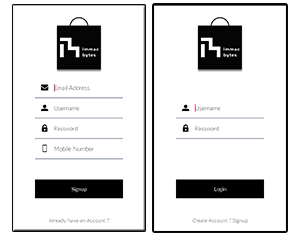

Black And White Login And Signup
  1. Black And White Login And Signup Template
  • Activity.Signup.xml
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".Signup">
    <?xml version="1.0" encoding="utf-8"?>
    <RelativeLayout
        xmlns:android="http://schemas.android.com/apk/res/android"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:background="@drawable/grdnt"
        >
        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="match_parent"
            android:gravity="center"
            android:paddingLeft="60dp"
            android:paddingRight="60dp">
            <LinearLayout
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:orientation="vertical"
                >
                <LinearLayout
                    android:layout_width="match_parent"
                    android:layout_height="wrap_content"
                    android:orientation="horizontal"
                    android:padding="16dp">
                    <ImageView
                        android:layout_width="20dp"
                        android:layout_height="20dp"
                        android:src="@drawable/message"
                        android:layout_gravity="center"/>
                    <EditText
                        android:id="@+id/mail"
                        android:layout_width="match_parent"
                        android:layout_height="wrap_content"
                        android:hint="Email Address"
                        android:textColorHint="#000000"
                        android:layout_marginLeft="15dp"
                        android:background="#00000000"
                        android:letterSpacing="0.1"
                        android:textSize="16dp"
                        android:inputType="text"
                        android:textColor="#fff"
                        />
                </LinearLayout>
                <LinearLayout
                    android:layout_width="match_parent"
                    android:layout_height="1dp"
                    android:background="#4a5a71"></LinearLayout>
                <LinearLayout
                    android:layout_width="match_parent"
                    android:layout_height="wrap_content"
                    android:orientation="horizontal"
                    android:padding="16dp">
                    <ImageView
                        android:layout_width="20dp"
                        android:layout_height="20dp"
                        android:src="@drawable/usrusr"
                        android:layout_gravity="center"/>
                    <EditText
                        android:id="@+id/usrusr"
                        android:layout_width="match_parent"
                        android:layout_height="wrap_content"
                        android:hint="Username"
                        android:textColorHint="#000000"
                        android:layout_marginLeft="15dp"
                        android:background="#00000000"
                        android:letterSpacing="0.1"
                        android:textSize="16dp"
                        android:inputType="text"
                        android:textColor="#fff"
                        />
                </LinearLayout>
                <LinearLayout
                    android:layout_width="match_parent"
                    android:layout_height="1dp"
                    android:background="#4a5a71"></LinearLayout>
                <LinearLayout
                    android:layout_width="match_parent"
                    android:layout_height="wrap_content"
                    android:orientation="horizontal"
                    android:padding="16dp">
                    <ImageView
                        android:layout_width="20dp"
                        android:layout_height="20dp"
                        android:src="@drawable/pswrd"
                        android:layout_gravity="center"/>
                    <EditText
                        android:id="@+id/pswrdd"
                        android:layout_width="match_parent"
                        android:layout_height="wrap_content"
                        android:hint="Password"
                        android:textColorHint="#000000"
                        android:layout_marginLeft="15dp"
                        android:background="#00000000"
                        android:inputType="textPassword"
                        android:letterSpacing="0.1"
                        android:textSize="16dp"
                        android:textColor="#fff"
                        />
                </LinearLayout>
                <LinearLayout
                    android:layout_width="match_parent"
                    android:layout_height="1dp"
                    android:background="#4a5a71"></LinearLayout>
                <LinearLayout
                    android:layout_width="match_parent"
                    android:layout_height="wrap_content"
                    android:orientation="horizontal"
                    android:padding="16dp">
                    <ImageView
                        android:layout_width="20dp"
                        android:layout_height="20dp"
                        android:src="@drawable/phonemo"
                        android:layout_gravity="center"/>
                    <EditText
                        android:id="@+id/mobphone"
                        android:layout_width="match_parent"
                        android:layout_height="wrap_content"
                        android:hint="Mobile Number"
                        android:textColorHint="#000000"
                        android:layout_marginLeft="15dp"
                        android:background="#00000000"
                        android:letterSpacing="0.1"
                        android:textSize="16dp"
                        android:inputType="number"
                        android:textColor="#fff"
                        />
                </LinearLayout>
                <LinearLayout
                    android:layout_width="match_parent"
                    android:layout_height="1dp"
                    android:background="#4a5a71"></LinearLayout>
            </LinearLayout>
        </LinearLayout>
        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="match_parent"
            android:paddingLeft="60dp"
            android:paddingRight="60dp"
            android:orientation="vertical"
            android:gravity="bottom"
            android:layout_marginBottom="20dp">
            <TextView
                android:id="@+id/sup"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:background="#000000"
                android:text="Signup"
                android:textColor="#FFFFFF"
                android:textStyle="bold"
                android:gravity="center"
                android:layout_gravity="bottom"
                android:padding="16dp"
                android:layout_marginBottom="50dp"
                android:letterSpacing="0.2"/>
            <TextView
                android:id="@+id/lin"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:gravity="center"

                android:text="Already have an Account ?"
                android:textColor="#000000"
                android:letterSpacing="0.1"/>
        </LinearLayout>
        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="match_parent"
            android:gravity="center"
            android:layout_marginBottom="400dp">
            <ImageView
                android:layout_width="150dp"
                android:layout_height="150dp"
                android:src="@drawable/ibytes"
                />
        </LinearLayout>
    </RelativeLayout>

</LinearLayout>

Activiy_login.xml

<?xml version="1.0" encoding="utf-8"?>
<android.support.constraint.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".Login">


    <?xml version="1.0" encoding="utf-8"?>
    <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:background="@drawable/grdnt">
        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="match_parent"
            android:gravity="center"
            android:paddingLeft="60dp"
            android:paddingRight="60dp">
            <LinearLayout
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:orientation="vertical">
                <LinearLayout
                    android:layout_width="match_parent"
                    android:layout_height="wrap_content"
                    android:orientation="horizontal"
                    android:padding="16dp">
                    <ImageView
                        android:layout_width="20dp"
                        android:layout_height="20dp"
                        android:src="@drawable/usrusr"
                        android:layout_gravity="center"/>
                    <EditText
                        android:id="@+id/usrusr"
                        android:layout_width="match_parent"
                        android:layout_height="wrap_content"
                        android:hint="Username"
                        android:textColorHint="#000000"
                        android:layout_marginLeft="15dp"
                        android:background="#00000000"
                        android:letterSpacing="0.1"
                        android:textSize="16dp"
                        android:inputType="text"
                        android:textColor="#fff"
                        />
                </LinearLayout>
                <LinearLayout
                    android:layout_width="match_parent"
                    android:layout_height="1dp"
                    android:background="#4a5a71"></LinearLayout>
                <LinearLayout
                    android:layout_width="match_parent"
                    android:layout_height="wrap_content"
                    android:orientation="horizontal"
                    android:padding="16dp">
                    <ImageView
                        android:layout_width="20dp"
                        android:layout_height="20dp"
                        android:src="@drawable/pswrd"
                        android:layout_gravity="center"/>
                    <EditText
                        android:id="@+id/pswrdd"
                        android:layout_width="match_parent"
                        android:layout_height="wrap_content"
                        android:hint="Password"
                        android:textColorHint="#000000"
                        android:layout_marginLeft="15dp"
                        android:background="#00000000"
                        android:inputType="textPassword"
                        android:letterSpacing="0.1"
                        android:textSize="16dp"
                        android:textColor="#fff"/>
                </LinearLayout>
                <LinearLayout
                    android:layout_width="match_parent"
                    android:layout_height="1dp"
                    android:background="#4a5a71"></LinearLayout>
            </LinearLayout>
        </LinearLayout>
        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="match_parent"
            android:paddingLeft="60dp"
            android:paddingRight="60dp"
            android:orientation="vertical"
            android:gravity="bottom"
            android:layout_marginBottom="20dp">
            <TextView
                android:id="@+id/lin"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:background="#000000"
                android:text="Login"
                android:textColor="#FFFFFF"
                android:textStyle="bold"
                android:gravity="center"
                android:layout_gravity="bottom"
                android:padding="16dp"
                android:layout_marginBottom="50dp"
                android:letterSpacing="0.2"/>
            <TextView
                android:id="@+id/sup"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:gravity="center"
                android:text="Create Account ? Signup"
                android:textColor="#000000"
                android:letterSpacing="0.1"/>
        </LinearLayout>
        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="match_parent"
            android:gravity="center"
            android:layout_marginBottom="400dp">
            <ImageView
                android:layout_width="150dp"
                android:layout_height="150dp"
                android:src="@drawable/ibytes"
                />
        </LinearLayout>
    </RelativeLayout>



</android.support.constraint.ConstraintLayout>

Past Image File To Drawable Folder

Drawable File Download Link here

Login And Signup Screen 2

White And Gray Login Signup
  1. Signup.xml
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    >
    <FrameLayout
        android:layout_width="match_parent"
        android:layout_height="260dp">
        <ImageView
            android:layout_width="match_parent"
            android:layout_height="260dp"
            android:background="@drawable/immacbytes"/>
        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:orientation="horizontal"
            android:layout_gravity="center|bottom"
            android:background="#80000000">
            <TextView
                android:id="@+id/sin"
                android:layout_width="0dp"
                android:layout_weight="1"
                android:layout_height="wrap_content"
                android:layout_gravity="center"
                android:gravity="center"
                android:text="Sign in"
                android:textColor="#fff"
                android:textSize="16dp"
                android:padding="16dp"/>
            <TextView
                android:id="@+id/sup"
                android:layout_width="0dp"
                android:layout_weight="1"
                android:layout_height="wrap_content"
                android:text="Sign Up"
                android:textColor="#000000"
                android:textSize="16dp"
                android:layout_gravity="center"
                android:gravity="center"
                android:padding="16dp"/>
        </LinearLayout>
    </FrameLayout>
    <EditText
        android:id="@+id/mal"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:hint="E-mail"
        android:inputType="text"
        android:textColor="#000"
        android:background="#f0f0f4"
        android:padding="12dp"
        android:layout_marginTop="15dp"
        android:layout_marginBottom="5dp"
        android:layout_marginLeft="20dp"
        android:layout_marginRight="20dp"
        android:drawableLeft="@drawable/mail"
        android:drawablePadding="16dp"
        />
    <EditText
        android:id="@+id/usrusr"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:hint="Username"
        android:inputType="text"
        android:textColor="#000"
        android:background="#f0f0f4"
        android:padding="12dp"
        android:layout_marginTop="10dp"
        android:layout_marginBottom="10dp"
        android:layout_marginLeft="20dp"
        android:layout_marginRight="20dp"
        android:drawableLeft="@drawable/user"
        android:drawablePadding="16dp"
        />
    <EditText
        android:id="@+id/pswd"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:hint="Password"
        android:inputType="textPassword"
        android:background="#f0f0f4"
        android:textColor="#000"
        android:layout_marginTop="5dp"
        android:layout_marginBottom="20dp"
        android:layout_marginLeft="20dp"
        android:layout_marginRight="20dp"
        android:padding="12dp"
       android:drawableLeft="@drawable/lockkers"
        android:drawablePadding="16dp"
        />
    <TextView
        android:id="@+id/act"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:background="@drawable/btnformate"
        android:layout_marginTop="15dp"
        android:layout_marginBottom="10dp"
        android:layout_marginLeft="70dp"
        android:layout_marginRight="70dp"
        android:gravity="center"
        android:textAlignment="center"
        android:padding="14dp"
        android:text="Creat account"
        android:textSize="16dp"
        android:textColor="#fff"
        />
    <TextView
        android:id="@+id/fboook"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginTop="10dp"
        android:text="Connect with Facebook"
        android:textSize="16dp"
        android:layout_gravity="center" />
</LinearLayout>

Activity Login.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical">
    <FrameLayout
        android:layout_width="match_parent"
        android:layout_height="260dp">
        <ImageView
            android:layout_width="match_parent"
            android:layout_height="260dp"
            android:background="@drawable/immacbytes"/>
        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:orientation="horizontal"
            android:layout_gravity="center|bottom"
            android:background="#80000000">
            <TextView
                android:id="@+id/sin"
                android:layout_width="0dp"
                android:layout_weight="1"
                android:layout_height="wrap_content"
                android:text="Sign in"
                android:textColor="#000000"
                android:textSize="16dp"
                android:layout_gravity="center"
                android:gravity="center"
                android:padding="16dp"/>
            <TextView
                android:id="@+id/sup"
                android:layout_width="0dp"
                android:layout_weight="1"
                android:layout_height="wrap_content"
                android:layout_gravity="center"
                android:gravity="center"
                android:text="Sign up"
                android:textColor="#fff"
                android:textSize="16dp"
                android:padding="16dp"/>
        </LinearLayout>
    </FrameLayout>
    <EditText
        android:id="@+id/mal"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:hint="E-mail"
        android:inputType="text"
        android:textColor="#000"
        android:background="#f0f0f4"
        android:padding="12dp"
        android:layout_marginTop="20dp"
        android:layout_marginBottom="10dp"
        android:layout_marginLeft="20dp"
        android:layout_marginRight="20dp"
        android:drawableLeft="@drawable/mail"
        android:drawablePadding="16dp"
        />
    <EditText
        android:id="@+id/pswd"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:hint="Password"
        android:inputType="textPassword"
        android:background="#f0f0f4"
        android:textColor="#000"
        android:layout_marginTop="10dp"
        android:layout_marginBottom="20dp"
        android:layout_marginLeft="20dp"
        android:layout_marginRight="20dp"
        android:padding="12dp"
        android:drawablePadding="16dp"
        android:drawableLeft="@drawable/lockkers" "
        />
    <Button
        android:id="@+id/sinnp"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:background="@drawable/btnformate"
        android:layout_marginBottom="5dp"
        android:layout_marginLeft="70dp"
        android:layout_marginRight="70dp"
        android:textAlignment="center"
        android:padding="14dp"
        android:gravity="center"
        android:text="Sign In"
        android:textSize="16dp"
        android:textColor="#fff"
        />
    <TextView
        android:id="@+id/act"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="Don't have an account?"
        android:textSize="16dp"
        android:layout_gravity="center" />
</LinearLayout>

Drawable File Link Here githublink

3. Blue And White Login Sognup Template

Blue And White Login And Signup Template

Login.xml

<?xml version="1.0" encoding="utf-8"?>
<FrameLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="@drawable/img">
    <RelativeLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:background="@drawable/timg">
        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:orientation="horizontal"
            android:layout_marginTop="37dp"
            android:layout_marginLeft="30dp">
            <ImageView
                android:id="@+id/sinb"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:src="@drawable/left"
                android:padding="10dp"
                android:layout_gravity="center"
                />
        </LinearLayout>
        <ImageView
            android:layout_width="90dp"
            android:layout_height="120dp"
            android:background="@drawable/logo"
            android:layout_centerHorizontal="true"
            android:layout_marginTop="140dp"
            />
        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:orientation="vertical"
            android:layout_alignParentBottom="true">
            <EditText
                android:id="@+id/usrusr"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:hint="Username"
                android:layout_marginTop="20dp"
                android:textSize="16dp"
                android:textColorHint="#ADCCE2"
                android:textColor="#ADCCE2"
                android:layout_marginLeft="22dp"
                android:inputType="text"
                android:background="#0000"
                android:padding="16dp"
                android:drawableRight="@drawable/user"
                android:layout_marginRight="35dp"/>
            <View
                android:layout_width="match_parent"
                android:layout_marginLeft="40dp"
                android:layout_marginRight="40dp"
                android:layout_height="1dp"
                android:background="#ADCCE2" />
            <EditText
                android:id="@+id/pswrd"
                android:textSize="16dp"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:hint="Password"
                android:textColorHint="#ADCCE2"
                android:layout_marginLeft="22dp"
                android:inputType="textPassword"
                android:textColor="#ADCCE2"
                android:maxLength="12"
                android:background="#0000"
                android:padding="16dp"
                android:drawableRight="@drawable/pasword"
                android:layout_marginRight="35dp"/>
            <View
                android:layout_width="match_parent"
                android:layout_marginLeft="40dp"
                android:layout_marginRight="40dp"
                android:layout_height="1dp"
                android:layout_marginBottom="10dp"
                android:background="#ADCCE2"/>
            <TextView
                android:id="@+id/sin"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:background="@drawable/angle"
                android:text="Sign In"
                android:textSize="16dp"
                android:textColor="#fff"
                android:gravity="center"
                android:layout_marginLeft="40dp"
                android:layout_marginRight="40dp"
                android:padding="16dp"
                android:layout_alignParentBottom="true"
                android:layout_marginBottom="28dp"
                android:layout_marginTop="32dp"
                />
        </LinearLayout>
    </RelativeLayout>
</FrameLayout>

Signup Activity.xml

<?xml version="1.0" encoding="utf-8"?>
<FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="@drawable/img">
    <RelativeLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:background="@drawable/timg">
        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:orientation="horizontal"
            android:layout_marginTop="37dp"
            android:layout_marginLeft="30dp">
            <ImageView
                android:id="@+id/sback"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:src="@drawable/left"
                android:padding="10dp"
                android:layout_gravity="center"
                />
        </LinearLayout>
        <ImageView
            android:layout_width="90dp"
            android:layout_height="120dp"
            android:background="@drawable/logo"
            android:layout_centerHorizontal="true"
            android:layout_marginTop="110dp"
            />
        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:orientation="vertical"
            android:layout_alignParentBottom="true">
            <EditText
                android:textSize="16dp"
                android:id="@+id/fname"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:hint="Fullname"
                android:textColorHint="#ADCCE2"
                android:textColor="#ADCCE2"
                android:layout_marginLeft="22dp"
                android:inputType="text"
                android:background="#0000"
                android:padding="16dp"
                android:layout_marginRight="35dp"/>
            <View
                android:layout_width="match_parent"
                android:layout_marginLeft="40dp"
                android:layout_marginRight="40dp"
                android:layout_height="1dp"
                android:background="#ADCCE2" />
            <EditText
                android:textSize="16dp"
                android:id="@+id/mail"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:hint="Email"
                android:textColorHint="#ADCCE2"
                android:textColor="#ADCCE2"
                android:layout_marginLeft="22dp"
                android:inputType="text"
                android:background="#0000"
                android:padding="16dp"
                android:layout_marginRight="35dp"/>
            <View
                android:layout_width="match_parent"
                android:layout_marginLeft="40dp"
                android:layout_marginRight="40dp"
                android:layout_height="1dp"
                android:background="#ADCCE2" />
            <EditText
                android:textSize="16dp"
                android:id="@+id/usrusr"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:hint="Username"
                android:textColorHint="#ADCCE2"
                android:textColor="#ADCCE2"
                android:layout_marginLeft="22dp"
                android:inputType="text"
                android:background="#0000"
                android:padding="16dp"
                android:layout_marginRight="35dp"/>
            <View
                android:layout_width="match_parent"
                android:layout_marginLeft="40dp"
                android:layout_marginRight="40dp"
                android:layout_height="1dp"
                android:background="#ADCCE2" />
            <EditText
                android:textSize="16dp"
                android:id="@+id/pswrd"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:hint="Password"
                android:textColorHint="#ADCCE2"
                android:layout_marginLeft="22dp"
                android:inputType="textPassword"
                android:maxLength="12"
                android:textColor="#ADCCE2"
                android:background="#0000"
                android:padding="16dp"
                android:layout_marginRight="35dp"/>
            <View
                android:layout_width="match_parent"
                android:layout_marginLeft="40dp"
                android:layout_marginRight="40dp"
                android:layout_height="1dp"
                android:layout_marginBottom="10dp"
                android:background="#ADCCE2"/>
            <TextView
                android:id="@+id/sin"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:background="@drawable/angle"
                android:text="Create"
                android:textSize="16dp"
                android:textColor="#fff"
                android:gravity="center"
                android:layout_marginLeft="40dp"
                android:layout_marginRight="40dp"
                android:padding="16dp"
                android:layout_alignParentBottom="true"
                android:layout_marginBottom="28dp"
                android:layout_marginTop="32dp"
                />
        </LinearLayout>
    </RelativeLayout>
</FrameLayout>

Drawable File Link Here

Wood White Login Signup

Wood White Login Signup

Login.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="@drawable/background">

    <ImageView
        android:layout_width="150dp"
        android:layout_height="150dp"
        android:src="@drawable/ib"
        android:layout_centerHorizontal="true"
        android:layout_marginTop="50dp"
        android:id="@+id/imgvw" />

    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:orientation="horizontal"
        android:layout_marginTop="520dp"
        android:layout_marginLeft="25dp"
        android:layout_marginRight="25dp"
        >
        <TextView
            android:id="@+id/logiin"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="Login"
            android:textColor="#fff"
            android:background="@drawable/border"
            android:padding="15dp"
            android:layout_weight="1"
            android:gravity="center"
            android:layout_marginRight="10dp"
            android:textStyle="bold"
            />
        <TextView
            android:id="@+id/sup"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="SignUp"
            android:textColor="#fff"
            android:background="@drawable/border"
            android:padding="15dp"
            android:layout_weight="1"
            android:gravity="center"
            android:layout_marginLeft="10dp"
            android:textStyle="bold"
            />
    </LinearLayout>
    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:gravity="center"
        android:paddingLeft="25dp"
        android:paddingRight="25dp"
        android:layout_marginTop="280dp"
        android:id="@+id/lnrlyout">
        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:orientation="vertical"
            >
            <LinearLayout
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:orientation="horizontal"
                android:padding="16dp">
                <ImageView
                    android:layout_width="20dp"
                    android:layout_height="20dp"
                    android:src="@drawable/user"
                    android:layout_gravity="center"/>
                <EditText
                    android:id="@+id/usrusr"
                    android:layout_width="match_parent"
                    android:layout_height="wrap_content"
                    android:hint="Username"
                    android:textColorHint="#fff"
                    android:layout_marginLeft="15dp"
                    android:background="#00000000"
                    android:letterSpacing="0.1"
                    android:textSize="16dp"
                    android:textColor="#fff"
                    android:inputType="text"
                    />
            </LinearLayout>
            <LinearLayout
                android:layout_width="match_parent"
                android:layout_height="0.5dp"
                android:background="#5fff"></LinearLayout>
            <LinearLayout
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:orientation="horizontal"
                android:padding="16dp">
                <ImageView
                    android:layout_width="20dp"
                    android:layout_height="20dp"
                    android:src="@drawable/password"
                    android:layout_gravity="center"/>
                <EditText
                    android:id="@+id/passwrd"
                    android:layout_width="match_parent"
                    android:layout_height="wrap_content"
                    android:hint="Password"
                    android:textColorHint="#fff"
                    android:layout_marginLeft="15dp"
                    android:background="#00000000"
                    android:inputType="textPassword"
                    android:letterSpacing="0.1"
                    android:textSize="16dp"
                    android:textColor="#fff"
                    />
            </LinearLayout>
            <LinearLayout
                android:layout_width="match_parent"
                android:layout_height="0.5dp"
                android:background="#5fff"></LinearLayout>
        </LinearLayout>
    </LinearLayout>

    <TextView
        android:id="@+id/bytes"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:text="Immac Bytes"
        android:textColor="#fff"
        android:textSize="30dp"
        android:gravity="top|center"
        android:textStyle="bold"
        android:layout_alignBottom="@+id/lnrlyout"
        android:layout_alignParentLeft="true"
        android:layout_alignParentStart="true"
        android:layout_marginBottom="39dp"
        android:layout_below="@+id/imgvw" />
</RelativeLayout>

Signup.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="@drawable/background">
    <ImageView
        android:layout_width="150dp"
        android:layout_height="150dp"
        android:src="@drawable/ib"
        android:layout_centerHorizontal="true"
        android:layout_marginTop="50dp"
        />
    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:gravity="center"
        android:paddingLeft="60dp"
        android:paddingRight="60dp"
        android:layout_marginTop="40dp">
        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:orientation="vertical"
            >
            <LinearLayout
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:orientation="horizontal"
                android:padding="16dp">
                <ImageView
                    android:layout_width="20dp"
                    android:layout_height="20dp"
                    android:src="@drawable/email"
                    android:layout_gravity="center"/>
                <EditText
                    android:id="@+id/mail"
                    android:layout_width="match_parent"
                    android:layout_height="wrap_content"
                    android:hint="Email Address"
                    android:textColorHint="#fff"
                    android:layout_marginLeft="15dp"
                    android:background="#00000000"
                    android:letterSpacing="0.1"
                    android:textSize="16dp"
                    android:textColor="#fff"
                    android:inputType="text"
                    />
            </LinearLayout>
            <LinearLayout
                android:layout_width="match_parent"
                android:layout_height="0.5dp"
                android:background="#5fff"></LinearLayout>
            <LinearLayout
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:orientation="horizontal"
                android:padding="16dp">
                <ImageView
                    android:layout_width="20dp"
                    android:layout_height="20dp"
                    android:src="@drawable/user"
                    android:layout_gravity="center"/>
                <EditText
                    android:id="@+id/usrusr"
                    android:layout_width="match_parent"
                    android:layout_height="wrap_content"
                    android:hint="Username"
                    android:textColorHint="#fff"
                    android:layout_marginLeft="15dp"
                    android:background="#00000000"
                    android:letterSpacing="0.1"
                    android:textSize="16dp"
                    android:textColor="#fff"
                    android:inputType="text"
                    />
            </LinearLayout>
            <LinearLayout
                android:layout_width="match_parent"
                android:layout_height="0.5dp"
                android:background="#5fff"></LinearLayout>
            <LinearLayout
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:orientation="horizontal"
                android:padding="16dp">
                <ImageView
                    android:layout_width="20dp"
                    android:layout_height="20dp"
                    android:src="@drawable/password"
                    android:layout_gravity="center"/>
                <EditText
                    android:id="@+id/passwrd"
                    android:layout_width="match_parent"
                    android:layout_height="wrap_content"
                    android:hint="Password"
                    android:textColorHint="#fff"
                    android:layout_marginLeft="15dp"
                    android:background="#00000000"
                    android:inputType="textPassword"
                    android:letterSpacing="0.1"
                    android:textSize="16dp"
                    android:textColor="#fff"/>
            </LinearLayout>
            <LinearLayout
                android:layout_width="match_parent"
                android:layout_height="0.5dp"
                android:background="#5fff"></LinearLayout>
            <LinearLayout
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:orientation="horizontal"
                android:padding="16dp">
                <ImageView
                    android:layout_width="20dp"
                    android:layout_height="20dp"
                    android:src="@drawable/mobile"
                    android:layout_gravity="center"/>
                <EditText
                    android:id="@+id/mobphone"
                    android:layout_width="match_parent"
                    android:layout_height="wrap_content"
                    android:hint="Mobile Number"
                    android:textColorHint="#fff"
                    android:layout_marginLeft="15dp"
                    android:background="#00000000"
                    android:letterSpacing="0.1"
                    android:textSize="16dp"
                    android:textColor="#fff"
                    android:inputType="number"
                    />
            </LinearLayout>
            <LinearLayout
                android:layout_width="match_parent"
                android:layout_height="0.5dp"
                android:background="#5fff"></LinearLayout>
        </LinearLayout>
    </LinearLayout>
    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_marginTop="500dp"
        android:layout_marginLeft="25dp"
        android:layout_marginRight="25dp"
        >
        <TextView
            android:id="@+id/sup"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="SIGNUP"
            android:textColor="#fff"
            android:background="@drawable/border"
            android:padding="15dp"
            android:layout_weight="1"
            android:gravity="center"
            android:layout_marginLeft="10dp"
            android:textStyle="bold"
            />
    </LinearLayout>
    <TextView
        android:id="@+id/logiin"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:text="Already Have An Account ! Login"
        android:textColor="#fff"
        android:gravity="center"
        android:layout_marginTop="550dp"/>
</RelativeLayout>

Drawable File Wood White Drawable link

Dark Wood Login Template

Dark Wood Login Template

Signup.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="@drawable/background">
    <ImageView
        android:layout_width="150dp"
        android:layout_height="150dp"
        android:src="@drawable/ib"
        android:layout_centerHorizontal="true"
        android:layout_marginTop="50dp"
        />
    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:gravity="center"
        android:paddingLeft="60dp"
        android:paddingRight="60dp"
        android:layout_marginTop="40dp">
        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:orientation="vertical"
            >
            <LinearLayout
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:orientation="horizontal"
                android:padding="16dp">
                <ImageView
                    android:layout_width="20dp"
                    android:layout_height="20dp"
                    android:src="@drawable/email"
                    android:layout_gravity="center"/>
                <EditText
                    android:id="@+id/mail"
                    android:layout_width="match_parent"
                    android:layout_height="wrap_content"
                    android:hint="Email Address"
                    android:textColorHint="#fff"
                    android:layout_marginLeft="15dp"
                    android:background="#00000000"
                    android:letterSpacing="0.1"
                    android:textSize="16dp"
                    android:textColor="#fff"
                    android:inputType="text"
                    />
            </LinearLayout>
            <LinearLayout
                android:layout_width="match_parent"
                android:layout_height="0.5dp"
                android:background="#5fff"></LinearLayout>
            <LinearLayout
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:orientation="horizontal"
                android:padding="16dp">
                <ImageView
                    android:layout_width="20dp"
                    android:layout_height="20dp"
                    android:src="@drawable/user"
                    android:layout_gravity="center"/>
                <EditText
                    android:id="@+id/usrusr"
                    android:layout_width="match_parent"
                    android:layout_height="wrap_content"
                    android:hint="Username"
                    android:textColorHint="#fff"
                    android:layout_marginLeft="15dp"
                    android:background="#00000000"
                    android:letterSpacing="0.1"
                    android:textSize="16dp"
                    android:textColor="#fff"
                    android:inputType="text"
                    />
            </LinearLayout>
            <LinearLayout
                android:layout_width="match_parent"
                android:layout_height="0.5dp"
                android:background="#5fff"></LinearLayout>
            <LinearLayout
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:orientation="horizontal"
                android:padding="16dp">
                <ImageView
                    android:layout_width="20dp"
                    android:layout_height="20dp"
                    android:src="@drawable/password"
                    android:layout_gravity="center"/>
                <EditText
                    android:id="@+id/passwrd"
                    android:layout_width="match_parent"
                    android:layout_height="wrap_content"
                    android:hint="Password"
                    android:textColorHint="#fff"
                    android:layout_marginLeft="15dp"
                    android:background="#00000000"
                    android:inputType="textPassword"
                    android:letterSpacing="0.1"
                    android:textSize="16dp"
                    android:textColor="#fff"/>
            </LinearLayout>
            <LinearLayout
                android:layout_width="match_parent"
                android:layout_height="0.5dp"
                android:background="#5fff"></LinearLayout>
            <LinearLayout
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:orientation="horizontal"
                android:padding="16dp">
                <ImageView
                    android:layout_width="20dp"
                    android:layout_height="20dp"
                    android:src="@drawable/mobile"
                    android:layout_gravity="center"/>
                <EditText
                    android:id="@+id/mobphone"
                    android:layout_width="match_parent"
                    android:layout_height="wrap_content"
                    android:hint="Mobile Number"
                    android:textColorHint="#fff"
                    android:layout_marginLeft="15dp"
                    android:background="#00000000"
                    android:letterSpacing="0.1"
                    android:textSize="16dp"
                    android:textColor="#fff"
                    android:inputType="number"
                    />
            </LinearLayout>
            <LinearLayout
                android:layout_width="match_parent"
                android:layout_height="0.5dp"
                android:background="#5fff"></LinearLayout>
        </LinearLayout>
    </LinearLayout>
    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_marginTop="500dp"
        android:layout_marginLeft="25dp"
        android:layout_marginRight="25dp"
        >
        <TextView
            android:id="@+id/sup"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="SIGNUP"
            android:textColor="#fff"
            android:background="@drawable/border"
            android:padding="15dp"
            android:layout_weight="1"
            android:gravity="center"
            android:layout_marginLeft="10dp"
            android:textStyle="bold"
            />
    </LinearLayout>
    <TextView
        android:id="@+id/logiin"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:text="Already Have An Account ! Login"
        android:textColor="#fff"
        android:gravity="center"
        android:layout_marginTop="550dp"/>
</RelativeLayout>

Login.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="@drawable/background">

    <ImageView
        android:layout_width="150dp"
        android:layout_height="150dp"
        android:src="@drawable/ib"
        android:layout_centerHorizontal="true"
        android:layout_marginTop="50dp"
        android:id="@+id/imgvw" />

    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:orientation="horizontal"
        android:layout_marginTop="520dp"
        android:layout_marginLeft="25dp"
        android:layout_marginRight="25dp"
        >
        <TextView
            android:id="@+id/logiin"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="Login"
            android:textColor="#fff"
            android:background="@drawable/border"
            android:padding="15dp"
            android:layout_weight="1"
            android:gravity="center"
            android:layout_marginRight="10dp"
            android:textStyle="bold"
            />
        <TextView
            android:id="@+id/sup"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="SignUp"
            android:textColor="#fff"
            android:background="@drawable/border"
            android:padding="15dp"
            android:layout_weight="1"
            android:gravity="center"
            android:layout_marginLeft="10dp"
            android:textStyle="bold"
            />
    </LinearLayout>
    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:gravity="center"
        android:paddingLeft="25dp"
        android:paddingRight="25dp"
        android:layout_marginTop="280dp"
        android:id="@+id/lnrlyout">
        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:orientation="vertical"
            >
            <LinearLayout
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:orientation="horizontal"
                android:padding="16dp">
                <ImageView
                    android:layout_width="20dp"
                    android:layout_height="20dp"
                    android:src="@drawable/user"
                    android:layout_gravity="center"/>
                <EditText
                    android:id="@+id/usrusr"
                    android:layout_width="match_parent"
                    android:layout_height="wrap_content"
                    android:hint="Username"
                    android:textColorHint="#fff"
                    android:layout_marginLeft="15dp"
                    android:background="#00000000"
                    android:letterSpacing="0.1"
                    android:textSize="16dp"
                    android:textColor="#fff"
                    android:inputType="text"
                    />
            </LinearLayout>
            <LinearLayout
                android:layout_width="match_parent"
                android:layout_height="0.5dp"
                android:background="#5fff"></LinearLayout>
            <LinearLayout
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:orientation="horizontal"
                android:padding="16dp">
                <ImageView
                    android:layout_width="20dp"
                    android:layout_height="20dp"
                    android:src="@drawable/password"
                    android:layout_gravity="center"/>
                <EditText
                    android:id="@+id/passwrd"
                    android:layout_width="match_parent"
                    android:layout_height="wrap_content"
                    android:hint="Password"
                    android:textColorHint="#fff"
                    android:layout_marginLeft="15dp"
                    android:background="#00000000"
                    android:inputType="textPassword"
                    android:letterSpacing="0.1"
                    android:textSize="16dp"
                    android:textColor="#fff"
                    />
            </LinearLayout>
            <LinearLayout
                android:layout_width="match_parent"
                android:layout_height="0.5dp"
                android:background="#5fff"></LinearLayout>
        </LinearLayout>
    </LinearLayout>

    <TextView
        android:id="@+id/bytes"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:text="Immac Bytes"
        android:textColor="#fff"
        android:textSize="30dp"
        android:gravity="top|center"
        android:textStyle="bold"
        android:layout_alignBottom="@+id/lnrlyout"
        android:layout_alignParentLeft="true"
        android:layout_alignParentStart="true"
        android:layout_marginBottom="39dp"
        android:layout_below="@+id/imgvw" />
</RelativeLayout>

Drawable Wood Dark Login Drawable Link

Android Flip Signup Template

Flip Signup

Signup.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="@drawable/signup"

    >
    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_centerInParent="true"
        android:orientation="vertical"
        android:layout_marginRight="30dp"
        android:layout_marginLeft="30dp">


        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"


            android:orientation="horizontal">

            <FrameLayout
                android:layout_width="wrap_content"
                android:layout_height="match_parent"
                android:background="#555c5b"
                >
                <ImageView
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content"
                    android:src="@drawable/layer2"
                    android:padding="16dp"/>
            </FrameLayout>

            <EditText
                android:id="@+id/email"
                android:layout_width="match_parent"
                android:layout_height="match_parent"
                android:background="#626562"
                android:padding="16dp"
                android:hint="Email Address"
                android:textColorHint="#fff"
                android:textSize="14dp"
                android:inputType="text"
                android:textColor="#fff"
                android:singleLine="true"

                />

        </LinearLayout>

        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:orientation="horizontal"
            android:layout_gravity="center"
            android:gravity="center"
            android:layout_marginTop="16dp"
            >
            <LinearLayout
                android:layout_width="0dp"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:orientation="horizontal"

                >
                <FrameLayout
                    android:layout_width="wrap_content"
                    android:layout_height="match_parent"
                    android:background="#555c5b"
                    >
                    <ImageView
                        android:layout_width="wrap_content"
                        android:layout_height="wrap_content"
                        android:src="@drawable/layer4"
                        android:padding="16dp"/>
                </FrameLayout>


                <EditText
                    android:id="@+id/pass"
                    android:layout_width="match_parent"
                    android:layout_height="match_parent"
                    android:background="#626562"
                    android:padding="16dp"
                    android:hint="Password"
                    android:textColorHint="#fff"
                    android:textSize="14dp"
                    android:singleLine="true"
                    android:inputType="textPassword"
                    android:textColor="#fff"
                    android:layout_marginRight="5dp"

                    />


            </LinearLayout>
            <LinearLayout
                android:layout_width="0dp"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:orientation="horizontal"
                >
                <FrameLayout
                    android:layout_width="wrap_content"
                    android:layout_height="match_parent"
                    android:background="#555c5b"
                    >
                    <ImageView
                        android:layout_width="wrap_content"
                        android:layout_height="wrap_content"
                        android:src="@drawable/layer3"
                        android:padding="16dp"/>
                </FrameLayout>
                <EditText
                    android:id="@+id/again"

                    android:layout_width="match_parent"
                    android:layout_height="match_parent"
                    android:background="#626562"
                    android:padding="16dp"
                    android:hint="Again"
                    android:textColorHint="#fff"
                    android:textSize="14dp"
                    android:inputType="textPassword"
                    android:textColor="#fff"
                    android:singleLine="true"/>
            </LinearLayout>

        </LinearLayout>


        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:orientation="horizontal"

            android:layout_gravity="center"
            android:gravity="center"
            android:layout_marginTop="16dp"
            >
            <FrameLayout
                android:layout_width="wrap_content"
                android:layout_height="match_parent"
                android:background="#555c5b"
                >
                <ImageView
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content"
                    android:src="@drawable/layer5"
                    android:padding="16dp"/>
            </FrameLayout>
            <EditText
                android:id="@+id/mob"
                android:layout_width="match_parent"
                android:layout_height="match_parent"
                android:background="#626562"
                android:padding="16dp"
                android:hint="Mobile Number"
                android:textColorHint="#fff"
                android:textSize="14dp"
                android:inputType="number"
                android:textColor="#fff"
                android:singleLine="true"

                />

        </LinearLayout>
        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:orientation="horizontal"
            android:layout_gravity="center"
            android:gravity="center"
            android:layout_marginTop="16dp"
            >
            <LinearLayout
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:orientation="horizontal"
                android:layout_weight="1"
                >
                <TextView
                    android:id="@+id/cont"
                    android:layout_width="0dp"
                    android:layout_weight="1"
                    android:layout_height="match_parent"
                    android:background="#626562"
                    android:padding="16dp"
                    android:text="Continue"
                    android:textColor="#fff"
                    android:textSize="14dp"
                    android:gravity="center"
                    android:layout_marginRight="8dp"
                    />
            </LinearLayout>

            <FrameLayout
                android:layout_width="wrap_content"
                android:layout_height="match_parent"
                android:background="#d57177"

                >


                <ImageView
                    android:layout_width="match_parent"
                    android:layout_height="wrap_content"
                    android:src="@drawable/layer6"
                    android:padding="16dp"
                    />
            </FrameLayout>



        </LinearLayout>




    </LinearLayout>


    <TextView
        android:id="@+id/signin"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:text="Already have An Account ? Sign In"
        android:textColor="#fff"
        android:layout_alignParentBottom="true"
        android:padding="20dp"
        android:gravity="center"

        />
    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:gravity="center"
        android:padding="50dp">
        <ImageView
            android:layout_width="80dp"
            android:layout_height="70dp"
            android:src="@drawable/wsdesign"

            />
    </LinearLayout>




</RelativeLayout>

Drawable Link

Zoo Login Signup

Signup.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    >


    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:orientation="vertical"
        android:padding="16dp"
        android:layout_marginTop="16dp">


        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:orientation="horizontal"
            >
            <ImageView
                android:id="@+id/zoologo"
                android:layout_width="50dp"
                android:layout_height="50dp"
                android:src="@drawable/zoologo"/>

            <LinearLayout
                android:layout_width="0dp"
                android:layout_weight="1"
                android:layout_height="wrap_content"
                android:orientation="vertical"
                android:layout_gravity="center"

                >

                <TextView
                    android:id="@+id/signin1"
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content"
                    android:text="Signin"
                    android:textSize="16dp"
                    android:layout_gravity="right"
                    android:gravity="end"
                    android:textColor="#2C3646"
                    />
                <LinearLayout
                    android:layout_width="39dp"
                    android:layout_height="1.5dp"
                    android:background="#2C3646"
                    android:layout_gravity="end"
                    android:layout_marginTop="2dp"

                    />

            </LinearLayout>
        </LinearLayout>


        <TextView
            android:id="@+id/signin"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:text="Create new account"
            android:textColor="#00051f"
            android:textSize="17dp"
            android:layout_marginTop="48dp"

            />



        <EditText
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:hint="USERNAME"
            android:inputType="text"
            android:textColorHint="#a9b0c3"
            android:textSize="13dp"
            android:background="#00000000"
            android:layout_marginTop="42dp"

            />

        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="0.5dp"
            android:background="#a9b0c3"
            android:layout_marginTop="10dp"

            />


        <EditText
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:hint="EMAIL ADDRESS"
            android:inputType="text"
            android:textColorHint="#a9b0c3"
            android:layout_marginTop="32dp"
            android:textSize="13dp"
            android:background="#00000000"

            />

        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="0.5dp"
            android:background="#a9b0c3"
            android:layout_marginTop="10dp"
            />

        <EditText
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:hint="PASSWORD"
            android:inputType="textPassword"
            android:textColorHint="#a9b0c3"
            android:layout_marginTop="32dp"
            android:textSize="13dp"
            android:background="#00000000"

            />

        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="0.5dp"
            android:background="#a9b0c3"
            android:layout_marginTop="10dp"
            />



        <TextView
            android:id="@+id/login"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:text="Signup"
            android:textStyle="bold"
            android:background="@drawable/round"
            android:textColor="#CBD1DC"
            android:gravity="center"
            android:padding="14dp"
            android:layout_marginTop="42dp"/>

    </LinearLayout>


    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:orientation="horizontal"
        android:layout_above="@+id/ter"
        android:gravity="center"
        android:padding="16dp"
        >
        <TextView
            android:layout_width="0dp"
            android:layout_weight="1"
            android:layout_height="wrap_content"
            android:text="or sign in with:"
            android:gravity="center"
            android:textColor="#2C3646"/>

        <ImageView
            android:layout_width="50dp"
            android:layout_height="50dp"
            android:src="@drawable/fb"
            android:layout_marginRight="5dp"
            />
        <ImageView
            android:layout_width="50dp"
            android:layout_height="50dp"
            android:src="@drawable/google"/>
        <ImageView
            android:layout_width="50dp"
            android:layout_height="50dp"
            android:src="@drawable/twiter"
            android:layout_marginLeft="5dp"/>

    </LinearLayout>


    <TextView
        android:id="@+id/ter"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:text="By Signing up you agree with our terms and conditions"
        android:textColor="#a9b0c3"
        android:layout_alignParentBottom="true"
        android:layout_marginBottom="16dp"
        android:textSize="12dp"
        android:gravity="center"
        />



</RelativeLayout>

Login.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    >

    <ImageView
        android:id="@+id/zoologo"
        android:layout_width="match_parent"
        android:layout_height="70dp"
        android:src="@drawable/zoologo"
        android:layout_marginTop="30dp"/>

    <TextView
        android:id="@+id/zoo"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:textSize="30dp"
        android:text="Zoo"
        android:textColor="#2C3646"
        android:gravity="center"
        android:layout_below="@+id/zoologo"
        android:textStyle="bold"
        android:layout_marginTop="10dp"
        />

    <TextView
        android:id="@+id/signin"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:text="Sign in"
        android:textColor="#00051f"
        android:textSize="17dp"
        android:layout_marginRight="20dp"
        android:layout_marginLeft="20dp"
        android:layout_below="@+id/zoo"
        android:layout_marginTop="20dp"
        />
    <LinearLayout
        android:id="@+id/main"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_below="@+id/signin"
        android:layout_marginLeft="20dp"
        android:layout_marginRight="20dp"
        android:layout_marginTop="50dp"
        android:orientation="vertical">


        <EditText
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:hint="USERNAME"
            android:inputType="text"
            android:textColorHint="#a9b0c3"
            android:textSize="13dp"
            android:background="#00000000"
            android:paddingLeft="8dp"
            />

        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="0.5dp"
            android:background="#a9b0c3"
            android:layout_marginTop="10dp"

            >
        </LinearLayout>

        <EditText
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:hint="PASSWORD"
            android:inputType="textPassword"
            android:textColorHint="#a9b0c3"
            android:layout_marginTop="50dp"
            android:textSize="13dp"
            android:background="#00000000"
            android:paddingLeft="8dp"
            />

        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="0.5dp"
            android:background="#a9b0c3"
            android:layout_marginTop="10dp"
            >
        </LinearLayout>

        <TextView
            android:id="@+id/login"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:text="Login"
            android:textStyle="bold"
            android:background="@drawable/round"
            android:textColor="#CBD1DC"
            android:gravity="center"
            android:padding="14dp"
            android:layout_marginTop="50dp"/>

        <TextView
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:text="or sign in with:"
            android:gravity="center"
            android:layout_marginTop="10dp"
            android:textColor="#2C3646"/>
        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:orientation="horizontal"
            android:layout_below="@+id/main"
            android:layout_marginTop="30dp"
            android:gravity="center">

            <ImageView
                android:layout_width="50dp"
                android:layout_height="50dp"
                android:src="@drawable/fb"
                android:layout_marginRight="5dp"
                />
            <ImageView
                android:layout_width="50dp"
                android:layout_height="50dp"
                android:src="@drawable/google"/>
            <ImageView
                android:layout_width="50dp"
                android:layout_height="50dp"
                android:src="@drawable/twiter"
                android:layout_marginLeft="5dp"/>


        </LinearLayout>

    </LinearLayout>

    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:orientation="horizontal"
        android:layout_alignParentBottom="true"
        android:layout_marginBottom="15dp"
        android:layout_marginLeft="20dp"
        android:layout_marginRight="20dp"
        >

        <TextView
            android:id="@+id/create"
            android:layout_width="0dp"
            android:layout_weight="1"
            android:layout_height="wrap_content"
            android:text="Don't Have An Account ?"
            android:textSize="13dp"
            android:textColor="#2C3646"
            />
        <TextView
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="Forgot Password"
            android:textSize="13dp"
            android:textColor="#2C3646"

            />
    </LinearLayout>


</RelativeLayout>

Drawable File Link

Ozon Login And Signup Template

MainScreen.xml

<?xml version="1.0" encoding="utf-8"?>
<FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="@drawable/bgimage">




    <RelativeLayout
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:background="@drawable/bgtrans">

        <TextView
            android:id="@+id/signin"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:text="SIGN IN"
            android:textSize="25dp"
            android:textColor="#54abee"
            android:gravity="center"
            android:layout_alignParentBottom="true"
            android:layout_marginBottom="45dp"
            />

        <TextView
            android:background="@drawable/ozzonlogo"
            android:id="@+id/ozzon"
            android:layout_width="132dp"
            android:layout_height="30dp"
            android:layout_centerInParent="true"
            />



        <TextView
            android:id="@+id/acc"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:text="Already have an account?"
            android:textSize="16dp"
            android:textColor="#c4c5c9"
            android:gravity="center"
            android:layout_above="@id/signin"
            android:paddingBottom="16dp"
            />

        <LinearLayout
            android:id="@+id/get"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_marginLeft="130dp"
            android:background="@drawable/roundedrect"
            android:padding="16dp"
            android:orientation="horizontal"
            android:layout_marginTop="140dp"

            >

            <FrameLayout
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_gravity="center"
                android:layout_marginLeft="1dp">


                <ImageView
                    android:layout_width="60dp"
                    android:layout_height="60dp"
                    android:src="@drawable/rect1"
                    />


                <ImageView
                    android:layout_width="40dp"
                    android:layout_height="40dp"
                    android:src="@drawable/bag"
                    android:paddingLeft="3dp"
                    android:layout_gravity="center"
                    />


            </FrameLayout>

            <TextView
                android:id="@+id/start"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:text="Get Started"
                android:textSize="22dp"
                android:textColor="#fff"
                android:layout_gravity="center"
                android:layout_marginLeft="16dp"/>

        </LinearLayout>




    </RelativeLayout>



</FrameLayout>

Login.xml

<?xml version="1.0" encoding="utf-8"?>
<FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="@drawable/bgimage">



    <RelativeLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:background="@drawable/transparentimage">

        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:orientation="horizontal"
            android:layout_marginTop="37dp"
            android:layout_marginLeft="30dp">

            <ImageView

                android:id="@+id/signinback"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:src="@drawable/back"
                android:padding="10dp"
                android:layout_gravity="center"

                />


            <TextView
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:text="SIGN IN"
                android:textSize="22dp"
                android:textColor="#ADCCE2"
                android:layout_marginLeft="16dp"
                android:layout_gravity="center"
                android:gravity="center"
                />

        </LinearLayout>

        <ImageView
            android:layout_width="90dp"
            android:layout_height="120dp"
            android:background="@drawable/logo"
            android:layout_centerHorizontal="true"
            android:layout_marginTop="140dp"
            />

        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:orientation="vertical"
            android:layout_alignParentBottom="true">




            <EditText
                android:id="@+id/username"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:hint="Username"
                android:layout_marginTop="20dp"
                android:textSize="16dp"
                android:textColorHint="#ADCCE2"
                android:textColor="#ADCCE2"
                android:layout_marginLeft="22dp"
                android:inputType="text"
                android:background="#0000"
                android:padding="16dp"
                android:drawableRight="@drawable/user"
                android:layout_marginRight="35dp"/>


            <View
                android:layout_width="match_parent"
                android:layout_marginLeft="40dp"
                android:layout_marginRight="40dp"
                android:layout_height="1dp"
                android:background="#ADCCE2" />

            <EditText
                android:id="@+id/password"
                android:textSize="16dp"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:hint="Password"
                android:textColorHint="#ADCCE2"
                android:layout_marginLeft="22dp"
                android:inputType="textPassword"
                android:textColor="#ADCCE2"
                android:maxLength="12"
                android:background="#0000"
                android:padding="16dp"
                android:drawableRight="@drawable/pasword"
                android:layout_marginRight="35dp"/>
            <View
                android:layout_width="match_parent"
                android:layout_marginLeft="40dp"
                android:layout_marginRight="40dp"
                android:layout_height="1dp"
                android:layout_marginBottom="10dp"
                android:background="#ADCCE2"/>




            <TextView
                android:id="@+id/signin"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:background="@drawable/rect"
                android:text="SIGN IN"
                android:textSize="16dp"
                android:textColor="#fff"
                android:gravity="center"
                android:layout_marginLeft="40dp"
                android:layout_marginRight="40dp"
                android:padding="16dp"
                android:layout_alignParentBottom="true"
                android:layout_marginBottom="28dp"
                android:layout_marginTop="32dp"


                />






        </LinearLayout>


    </RelativeLayout>
</FrameLayout>

Signup.xml

<?xml version="1.0" encoding="utf-8"?>
<FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="@drawable/bgimage">



    <RelativeLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:background="@drawable/transparentimage">

        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:orientation="horizontal"
            android:layout_marginTop="37dp"
            android:layout_marginLeft="30dp">

            <ImageView

                android:id="@+id/signupback"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:src="@drawable/back"
                android:padding="10dp"
                android:layout_gravity="center"

                />


            <TextView
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:text="SIGN UP"
                android:textSize="22dp"
                android:textColor="#ADCCE2"
                android:layout_marginLeft="16dp"
                android:layout_gravity="center"
                android:gravity="center"
                />

        </LinearLayout>

        <ImageView
            android:layout_width="90dp"
            android:layout_height="120dp"
            android:background="@drawable/logo"
            android:layout_centerHorizontal="true"
            android:layout_marginTop="110dp"
            />

        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:orientation="vertical"
            android:layout_alignParentBottom="true">

            <EditText
                android:textSize="16dp"
                android:id="@+id/fullname"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:hint="Fullname"
                android:textColorHint="#ADCCE2"
                android:textColor="#ADCCE2"
                android:layout_marginLeft="22dp"
                android:inputType="text"
                android:background="#0000"
                android:padding="16dp"
                android:layout_marginRight="35dp"/>


            <View
                android:layout_width="match_parent"
                android:layout_marginLeft="40dp"
                android:layout_marginRight="40dp"
                android:layout_height="1dp"
                android:background="#ADCCE2" />


            <EditText
                android:textSize="16dp"
                android:id="@+id/email"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:hint="Email"

                android:textColorHint="#ADCCE2"
                android:textColor="#ADCCE2"
                android:layout_marginLeft="22dp"
                android:inputType="text"
                android:background="#0000"
                android:padding="16dp"
                android:layout_marginRight="35dp"/>


            <View
                android:layout_width="match_parent"
                android:layout_marginLeft="40dp"
                android:layout_marginRight="40dp"
                android:layout_height="1dp"
                android:background="#ADCCE2" />





            <EditText
                android:textSize="16dp"
                android:id="@+id/username"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:hint="Username"

                android:textColorHint="#ADCCE2"
                android:textColor="#ADCCE2"
                android:layout_marginLeft="22dp"
                android:inputType="text"
                android:background="#0000"
                android:padding="16dp"

                android:layout_marginRight="35dp"/>


            <View
                android:layout_width="match_parent"
                android:layout_marginLeft="40dp"
                android:layout_marginRight="40dp"
                android:layout_height="1dp"
                android:background="#ADCCE2" />

            <EditText
                android:textSize="16dp"
                android:id="@+id/password"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:hint="Password"
                android:textColorHint="#ADCCE2"
                android:layout_marginLeft="22dp"
                android:inputType="textPassword"
                android:maxLength="12"
                android:textColor="#ADCCE2"
                android:background="#0000"
                android:padding="16dp"

                android:layout_marginRight="35dp"/>
            <View
                android:layout_width="match_parent"
                android:layout_marginLeft="40dp"
                android:layout_marginRight="40dp"
                android:layout_height="1dp"
                android:layout_marginBottom="10dp"
                android:background="#ADCCE2"/>




            <TextView
                android:id="@+id/signin"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:background="@drawable/rect"
                android:text="CREATE"
                android:textSize="16dp"
                android:textColor="#fff"
                android:gravity="center"
                android:layout_marginLeft="40dp"
                android:layout_marginRight="40dp"
                android:padding="16dp"
                android:layout_alignParentBottom="true"
                android:layout_marginBottom="28dp"
                android:layout_marginTop="32dp"
                />






        </LinearLayout>


    </RelativeLayout>
</FrameLayout>

Drawable File Link

Holiday Signup Login

Signup.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="@drawable/uikitblur">
    <ImageView
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:src="@drawable/transparent"
        android:scaleType="fitXY"

        />
    <ImageView
        android:id="@+id/logo"
        android:layout_width="90dp"
        android:layout_height="90dp"
        android:src="@drawable/green"
        android:layout_centerHorizontal="true"
        android:layout_marginTop="50dp"/>
    <TextView
        android:id="@+id/holliday"
        android:layout_below="@+id/logo"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:text="Holliday"
        android:textSize="30dp"
        android:textColor="#fff"
        android:gravity="center"

        />
    <TextView
        android:layout_above="@+id/main"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:text="Create Account"
        android:gravity="center"
        android:textColor="#fff"
        android:textSize="20dp"
        android:layout_marginBottom="50dp"/>

    <LinearLayout
        android:id="@+id/main"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:orientation="vertical"
        android:layout_alignParentBottom="true">

        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:orientation="horizontal"
            android:layout_marginLeft="30dp"
            android:layout_marginRight="30dp"
            android:background="@drawable/roundwhite">

            <ImageView
                android:layout_weight="1"
                android:layout_width="0dp"
                android:layout_height="wrap_content"
                android:src="@drawable/email"
                android:layout_gravity="center"
                android:paddingLeft="10dp"/>
            <EditText
                android:layout_weight="1"
                android:layout_width="match_parent"
                android:layout_height="50dp"
                android:background="#00000000"
                android:paddingLeft="10dp"
                android:letterSpacing="0.1"
                android:hint="Email Address"
                android:textColor="#fff"

                android:textColorHint="#fff"
                android:drawablePadding="10dp"
                android:textSize="13dp"
                />
        </LinearLayout>
        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:orientation="horizontal"
            android:layout_marginLeft="30dp"
            android:layout_marginRight="30dp"
            android:background="@drawable/roundwhite"
            android:layout_marginTop="10dp">

            <ImageView
                android:layout_weight="1"
                android:layout_width="0dp"
                android:layout_height="wrap_content"
                android:src="@drawable/password"
                android:layout_gravity="center"
                android:paddingLeft="10dp"/>
            <EditText
                android:layout_weight="1"
                android:layout_width="match_parent"
                android:layout_height="50dp"
                android:background="#00000000"
                android:paddingLeft="10dp"
                android:hint="Password"
                android:inputType="textPassword"
                android:textColor="#fff"
                android:letterSpacing="0.1"
                android:textColorHint="#fff"
                android:drawablePadding="10dp"
                android:textSize="13dp"
                />
        </LinearLayout>

        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:orientation="horizontal"
            android:background="@drawable/roundwhite"
            android:layout_marginLeft="30dp"
            android:layout_marginRight="30dp"
            android:layout_marginTop="10dp">

            <ImageView
                android:id="@+id/pass"
                android:layout_width="0dp"
                android:layout_height="wrap_content"
                android:src="@drawable/password"
                android:layout_weight="1"
                android:layout_gravity="center"
                android:paddingLeft="10dp"
                />


            <EditText
                android:layout_width="match_parent"
                android:layout_height="50dp"
                android:background="#00000000"
                android:paddingLeft="10dp"
                android:hint="Confirm Password"
                android:inputType="textPassword"
                android:textColorHint="#fff"
                android:textColor="#fff"
                android:textSize="13dp"
                android:letterSpacing="0.1"
                android:layout_weight="1"
                />
        </LinearLayout>
        <TextView
            android:id="@+id/getstarted"
            android:layout_width="match_parent"
            android:layout_height="50dp"
            android:background="@drawable/round"

            android:text="Signup"
            android:textStyle="bold"
            android:gravity="center"
            android:textColor="#fff"
            android:layout_above="@+id/bottom"
            android:layout_marginLeft="30dp"
            android:layout_marginRight="30dp"
            android:layout_marginBottom="20dp"
            android:layout_marginTop="10dp"/>

        <LinearLayout
            android:id="@+id/bottom"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_alignParentBottom="true"
            android:orientation="horizontal"
            android:padding="16dp">

            <TextView
                android:id="@+id/signin"
                android:layout_weight="1"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:text="Signin !"
                android:textColor="#FFF"/>
            <TextView
                android:layout_weight="1"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:text="Need Help ?"
                android:textColor="#FFF"
                android:gravity="end"/>
        </LinearLayout>


    </LinearLayout>
</RelativeLayout>

Login.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="@drawable/uikitbgclear">
    <ImageView
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:src="@drawable/transparent"
        android:scaleType="fitXY"
        />

    <ImageView
        android:id="@+id/logo"
        android:layout_width="100dp"
        android:layout_height="100dp"
        android:src="@drawable/green"
        android:layout_centerHorizontal="true"
        android:layout_marginTop="50dp"/>
    <TextView
        android:id="@+id/holliday"
        android:layout_below="@+id/logo"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:text="Holliday"
        android:textSize="40dp"
        android:textColor="#fff"
        android:gravity="center"
        android:layout_marginTop="70dp"/>

    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:orientation="vertical"
        android:layout_alignParentBottom="true">

        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:orientation="horizontal"
            android:layout_marginLeft="30dp"
            android:layout_marginRight="30dp"
            android:background="@drawable/roundwhite">

            <ImageView
                android:layout_weight="1"
                android:layout_width="0dp"
                android:layout_height="wrap_content"
                android:src="@drawable/username"
                android:layout_gravity="center"
                android:paddingLeft="10dp"/>
            <EditText
                android:layout_weight="1"
                android:layout_width="match_parent"
                android:layout_height="50dp"
                android:background="#00000000"
                android:paddingLeft="10dp"

                android:hint="Username"
                android:textColor="#fff"

                android:textColorHint="#fff"
                android:drawablePadding="10dp"
                android:textSize="13dp"
                />
        </LinearLayout>

        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:orientation="horizontal"
            android:background="@drawable/roundwhite"
            android:layout_marginLeft="30dp"
            android:layout_marginRight="30dp"
            android:layout_marginTop="10dp">

            <ImageView
                android:id="@+id/pass"
                android:layout_width="0dp"
                android:layout_height="wrap_content"
                android:src="@drawable/password"
                android:layout_weight="1"
                android:layout_gravity="center"
                android:paddingLeft="10dp"
                />


            <EditText
                android:layout_width="match_parent"
                android:layout_height="50dp"
                android:background="#00000000"
                android:paddingLeft="10dp"
                android:hint="Password"
                android:inputType="textPassword"
                android:textColorHint="#fff"
                android:textColor="#fff"
                android:textSize="13dp"
                android:layout_weight="1"
                />
        </LinearLayout>
        <TextView
            android:id="@+id/getstarted"
            android:layout_width="match_parent"
            android:layout_height="50dp"
            android:background="@drawable/round"

            android:text="Get Started"
            android:textStyle="bold"
            android:gravity="center"
            android:textColor="#fff"
            android:layout_above="@+id/bottom"
            android:layout_marginLeft="30dp"
            android:layout_marginRight="30dp"
            android:layout_marginBottom="20dp"
            android:layout_marginTop="10dp"/>

        <LinearLayout
            android:id="@+id/bottom"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_alignParentBottom="true"
            android:orientation="horizontal"
            android:padding="16dp">

            <TextView
                android:id="@+id/create"
                android:layout_weight="1"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:text="Create Account"
                android:textColor="#FFF"/>
            <TextView
                android:layout_weight="1"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:text="Need Help ?"
                android:textColor="#FFF"
                android:gravity="end"/>
        </LinearLayout>


    </LinearLayout>
</RelativeLayout>

Drawable File Link

Android Mssql Retrieve Data Jdbc Connection

  1. Follow Mssql Connection With Android From This Link

2. Design Your Ui Like This Way

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:orientation="vertical"
    android:layout_height="match_parent"
    tools:context=".MainActivity">

 <EditText
     android:id="@+id/code"
     android:hint="Item Code"
     android:layout_width="match_parent"
     android:layout_height="wrap_content" />


 <EditText
     android:id="@+id/desc"
     android:hint="Item Description"
     android:layout_width="match_parent"
     android:layout_height="wrap_content" />

    <Button
        android:background="@color/colorAccent"
        android:text="Show Data"
        android:id="@+id/showdata"
        android:layout_width="match_parent"
        android:layout_height="wrap_content" />

</LinearLayout>

3. MainActivity.java File Like This

package sap.business.one.sapdatatextview;

import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;
import android.text.TextUtils;
import android.view.View;
import android.widget.Button;
import android.widget.EditText;
import android.widget.TextView;
import android.widget.Toast;

import java.sql.Connection;
import java.sql.ResultSet;
import java.sql.SQLException;
import java.sql.Statement;
import java.util.ArrayList;
import java.util.List;

public class MainActivity extends AppCompatActivity {
    private EditText code, desc;
    private Button showdata;
    private Connection con;
    private List codelist;
    private List codedesc;
    ConnectionClass connectionClass;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        code = findViewById(R.id.code);
        desc = findViewById(R.id.desc);
        showdata = findViewById(R.id.showdata);
        codelist = new ArrayList();
        codedesc = new ArrayList();


        connectionClass = new ConnectionClass();
        try {
            con = connectionClass.CONN();
            if (con == null) {
                Toast.makeText(getApplicationContext(), "Connection Unsuccessfull", Toast.LENGTH_LONG).show();
            } else {
                Toast.makeText(getApplicationContext(), "Connected", Toast.LENGTH_LONG).show();

            }
        } catch (Exception e) {
        }

        showdata.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                String codetext = code.getText().toString().trim();

                if (TextUtils.isEmpty(codetext)) {
                    code.setError("Please Enter Code");
                } else {

                    String query = "SELECT ITEMCODE,ITEMNAME FROM OITM WHERE ITEMCODE='" + codetext + "' ";
                    try {
                        Statement statement = con.createStatement();
                        ResultSet resultSet = statement.executeQuery(query);
                        if (resultSet != null) {

                            while (resultSet.next()) {
                                codelist.add(resultSet.getString("ITEMCODE"));
                                codedesc.add(resultSet.getString("ITEMNAME"));
                            }
                            code.setText(codelist.get(0).toString());
                            desc.setText(codedesc.get(0).toString());
                        }
                    } catch (SQLException e) {
                        e.printStackTrace();
                    }
                }
            }
        });
    }
}

4 After Install The Apk And Fill The First Edit Text You Can View Your Data Like This Way From Your Database.

GRIDLAYOUT WITH CARDVIEW

  1. Implement Recyclerview Dependency In App.module Gradle File And Sync Project
    implementation 'com.android.support:cardview-v7:28.0.0'

2. Activity.Main.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    android:background="#D3D3D3"
    android:weightSum="10"
    tools:context="com.example.bodhi64.virtuozatutorials.MainActivity">

    <RelativeLayout
        android:layout_weight="2"
        android:layout_width="match_parent"
        android:layout_height="0dp">

        <TextView
            android:id="@+id/textGrid"
            android:text="GRID LAYOUT"
            android:textSize="34sp"
            android:textColor="#000"
            android:layout_centerInParent="true"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content" />

    </RelativeLayout>

    <GridLayout
        android:id="@+id/mainGrid"
        android:rowCount="3"
        android:columnCount="2"
        android:alignmentMode="alignMargins"
        android:columnOrderPreserved="false"
        android:layout_weight="8"
        android:layout_width="match_parent"
        android:layout_height="0dp"
        android:padding="14dp">

        <!-- ROW 1  -->
        <!-- COLUMN 1  -->



        <android.support.v7.widget.CardView
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:layout_columnWeight="1"
            android:layout_marginBottom="16dp"
            android:layout_rowWeight="1"
            android:layout_marginLeft="16dp"
            android:layout_marginRight="16dp"
            app:cardElevation="8dp"
            app:cardCornerRadius="8dp">

            <LinearLayout
                android:layout_gravity="center_horizontal|center_vertical"
                android:layout_margin="16dp"
                android:orientation="vertical"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content">

                <ImageView
                    android:src="@drawable/ic_back1"
                    android:layout_gravity="center_horizontal"
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content" />

                <TextView
                    android:textAlignment="center"
                    android:text="Text"
                    android:textColor="#000"
                    android:textSize="18sp"
                    android:textStyle="bold"
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content" />

            </LinearLayout>

        </android.support.v7.widget.CardView>

        <!-- COLUMN 2  -->

        <android.support.v7.widget.CardView
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:layout_columnWeight="1"
            android:layout_marginBottom="16dp"
            android:layout_rowWeight="1"
            android:layout_marginLeft="16dp"
            android:layout_marginRight="16dp"
            app:cardElevation="8dp"
            app:cardCornerRadius="8dp">

            <LinearLayout
                android:layout_gravity="center_horizontal|center_vertical"
                android:layout_margin="16dp"
                android:orientation="vertical"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content">

                <ImageView
                    android:src="@drawable/ic_back2"
                    android:layout_gravity="center_horizontal"
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content" />

                <TextView
                    android:textAlignment="center"
                    android:text="Text2"
                    android:textColor="#000"
                    android:textSize="18sp"
                    android:textStyle="bold"
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content" />

            </LinearLayout>

        </android.support.v7.widget.CardView>



        <!-- ROW 2  -->
        <!-- COLUMN 1  -->

        <android.support.v7.widget.CardView
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:layout_columnWeight="1"
            android:layout_marginBottom="16dp"
            android:layout_rowWeight="1"
            android:layout_marginLeft="16dp"
            android:layout_marginRight="16dp"
            app:cardElevation="8dp"
            app:cardCornerRadius="8dp">

            <LinearLayout
                android:layout_gravity="center_horizontal|center_vertical"
                android:layout_margin="16dp"
                android:orientation="vertical"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content">

                <ImageView
                    android:src="@drawable/ic_back3"
                    android:layout_gravity="center_horizontal"
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content" />

                <TextView
                    android:textAlignment="center"
                    android:text="Text3"
                    android:textColor="#000"
                    android:textSize="18sp"
                    android:textStyle="bold"
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content" />

            </LinearLayout>

        </android.support.v7.widget.CardView>

        <!-- COLUMN 2  -->

        <android.support.v7.widget.CardView
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:layout_columnWeight="1"
            android:layout_marginBottom="16dp"
            android:layout_rowWeight="1"
            android:layout_marginLeft="16dp"
            android:layout_marginRight="16dp"
            app:cardElevation="8dp"
            app:cardCornerRadius="8dp">

            <LinearLayout
                android:layout_gravity="center_horizontal|center_vertical"
                android:layout_margin="16dp"
                android:orientation="vertical"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content">

                <ImageView
                    android:src="@drawable/ic_back4"
                    android:layout_gravity="center_horizontal"
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content" />

                <TextView
                    android:textAlignment="center"
                    android:text="Text4"
                    android:textColor="#000"
                    android:textSize="18sp"
                    android:textStyle="bold"
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content" />

            </LinearLayout>

        </android.support.v7.widget.CardView>


        <!-- ROW 3  -->
        <!-- COLUMN 1  -->

        <android.support.v7.widget.CardView
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:layout_columnWeight="1"
            android:layout_marginBottom="16dp"
            android:layout_rowWeight="1"
            android:layout_marginLeft="16dp"
            android:layout_marginRight="16dp"
            app:cardElevation="8dp"
            app:cardCornerRadius="8dp">

            <LinearLayout
                android:layout_gravity="center_horizontal|center_vertical"
                android:layout_margin="16dp"
                android:orientation="vertical"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content">

                <ImageView
                    android:src="@drawable/ic_back5"
                    android:layout_gravity="center_horizontal"
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content" />

                <TextView
                    android:textAlignment="center"
                    android:text="Text"
                    android:textColor="#000"
                    android:textSize="18sp"
                    android:textStyle="bold"
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content" />

            </LinearLayout>

        </android.support.v7.widget.CardView>

        <!-- COLUMN 2  -->

        <android.support.v7.widget.CardView
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:layout_columnWeight="1"
            android:layout_marginBottom="16dp"
            android:layout_rowWeight="1"
            android:layout_marginLeft="16dp"
            android:layout_marginRight="16dp"
            app:cardElevation="8dp"
            app:cardCornerRadius="8dp">

            <LinearLayout
                android:layout_gravity="center_horizontal|center_vertical"
                android:layout_margin="16dp"
                android:orientation="vertical"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content">

                <ImageView
                    android:src="@drawable/ic_back6"
                    android:layout_gravity="center_horizontal"
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content" />

                <TextView
                    android:textAlignment="center"
                    android:text="Text2"
                    android:textColor="#000"
                    android:textSize="18sp"
                    android:textStyle="bold"
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content" />

            </LinearLayout>

        </android.support.v7.widget.CardView>

    </GridLayout>



</LinearLayout>

3. MainActivity.java

import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;
import android.support.v7.widget.CardView;
import android.view.View;
import android.widget.GridLayout;
import android.widget.Toast;


public class MainActivity extends AppCompatActivity {

    GridLayout gridLayout;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        gridLayout=(GridLayout)findViewById(R.id.mainGrid);

        setSingleEvent(gridLayout);

    }

// we are setting onClickListener for each element
    private void setSingleEvent(GridLayout gridLayout) {
        for(int i = 0; i<gridLayout.getChildCount();i++){
            CardView cardView=(CardView)gridLayout.getChildAt(i);
            final int finalI= i;
            cardView.setOnClickListener(new View.OnClickListener() {
                @Override
                public void onClick(View view) {
                    Toast.makeText(MainActivity.this,"Clicked at index "+ finalI,
                            Toast.LENGTH_SHORT).show();
                }
            });
        }
    }


}

Another Good Link
